Boost Pressure Sensor

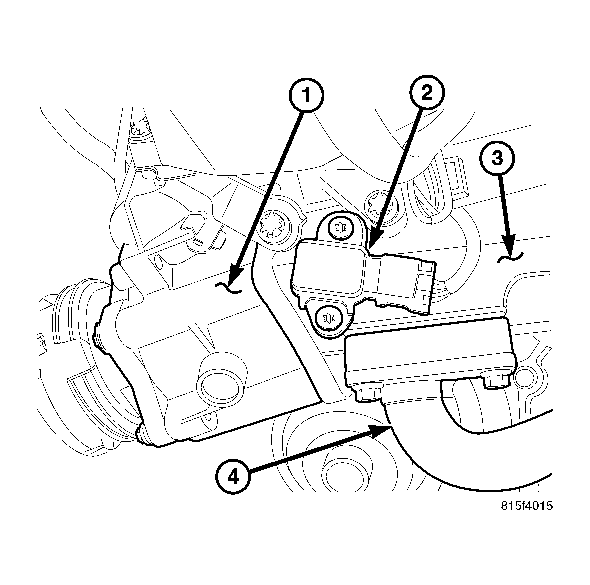

Fig 1: Locating Boost Pressure Sensor
GC0039522Courtesy of CHRYSLER LLC
1 - AIR FLOW CONTROL VALVE
2 - BOOST PRESSURE SENSOR
3 - CHARGE AIR CROSS OVER TUBE
4 - EGR TUBE
  1. Position the boost pressure sensor onto the charge air cross over tube and install the fasteners. See Fig 1. Tighten the fasteners to 9 N.m (80 in. lbs.).
  2. Connect the sensor wiring harness connector.
  3. Connect the negative battery cable.
