Fuel Pump Module

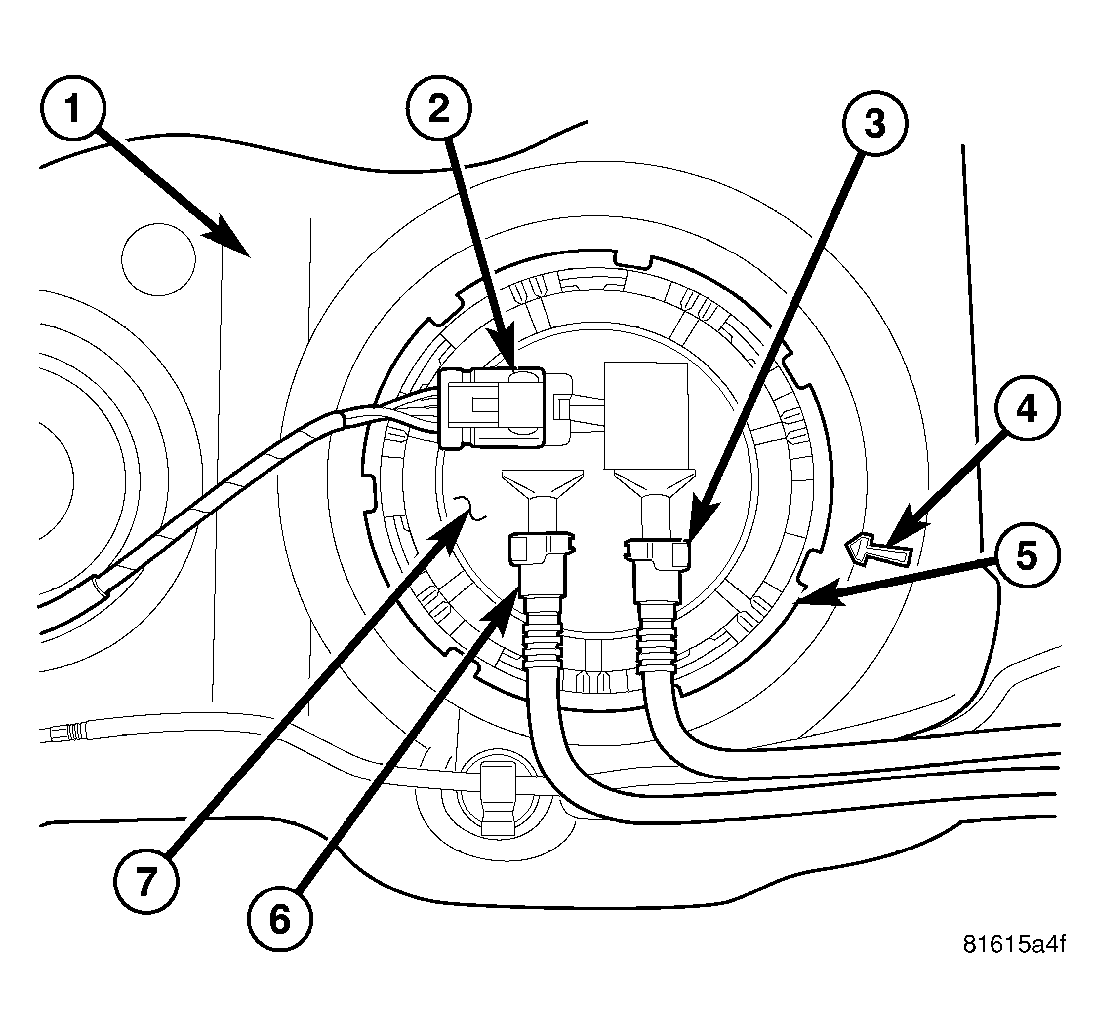

Fig 1: Fuel Pump Module (Top) - Diesel

Courtesy of CHRYSLER LLC

Drain and remove fuel tank. See STANDARD PROCEDURE .
Note rotational position of pump module before attempting removal. An indexing arrow (4) is located on top of module for this purpose.
Disconnect pigtail harness connector (2) at pump module (7).
Disconnect fittings (3) and (6) from pump module. See STANDARD PROCEDURE .

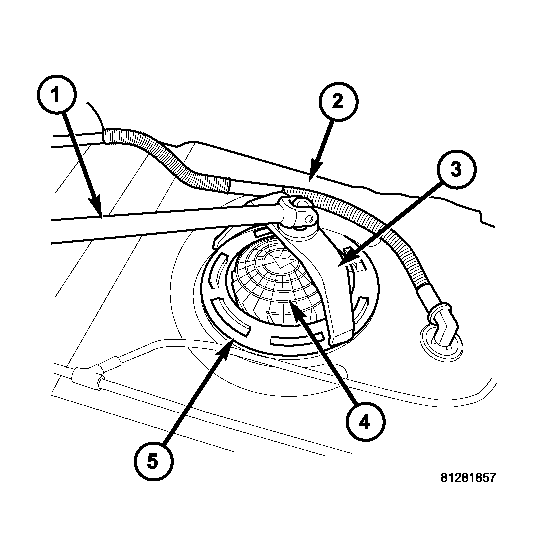

Fig 2: Fuel Pump Module Location
Courtesy of CHRYSLER LLC
Position Lock ring Remover/Installer 9340 (3) into notches on outside edge of lock ring (5).
Install 1/2 inch drive breaker bar (1) to tool 9340 (3).
Rotate breaker bar counter-clockwise to remove lockring.
Remove lockring. The module will spring up slightly when lockring is removed.
Remove module from fuel tank. Be careful not to bend float arm while removing.
