Circuit Schematic

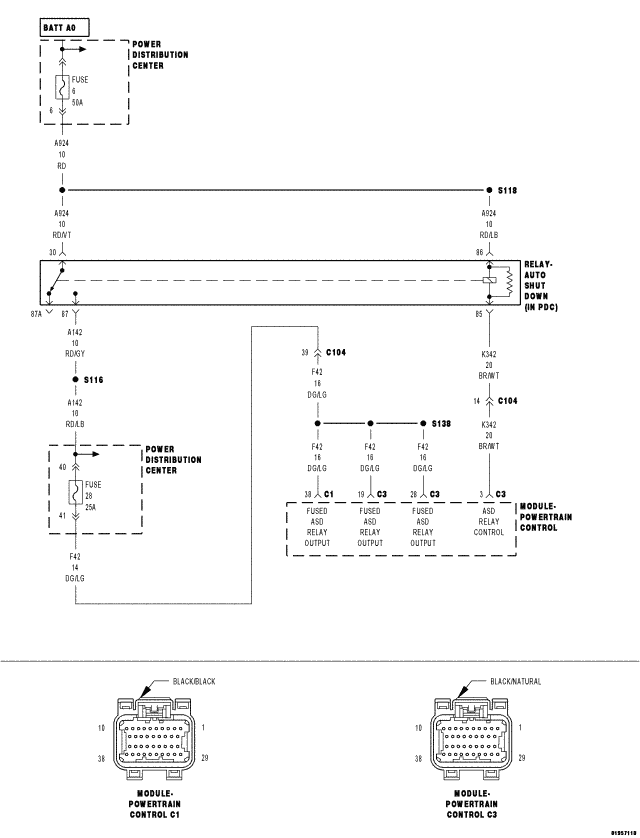

Fig 1: Auto Shutdown Relay Control Circuit Schematic

GC0058537

Courtesy of CHRYSLER LLC
