Circuit Schematic

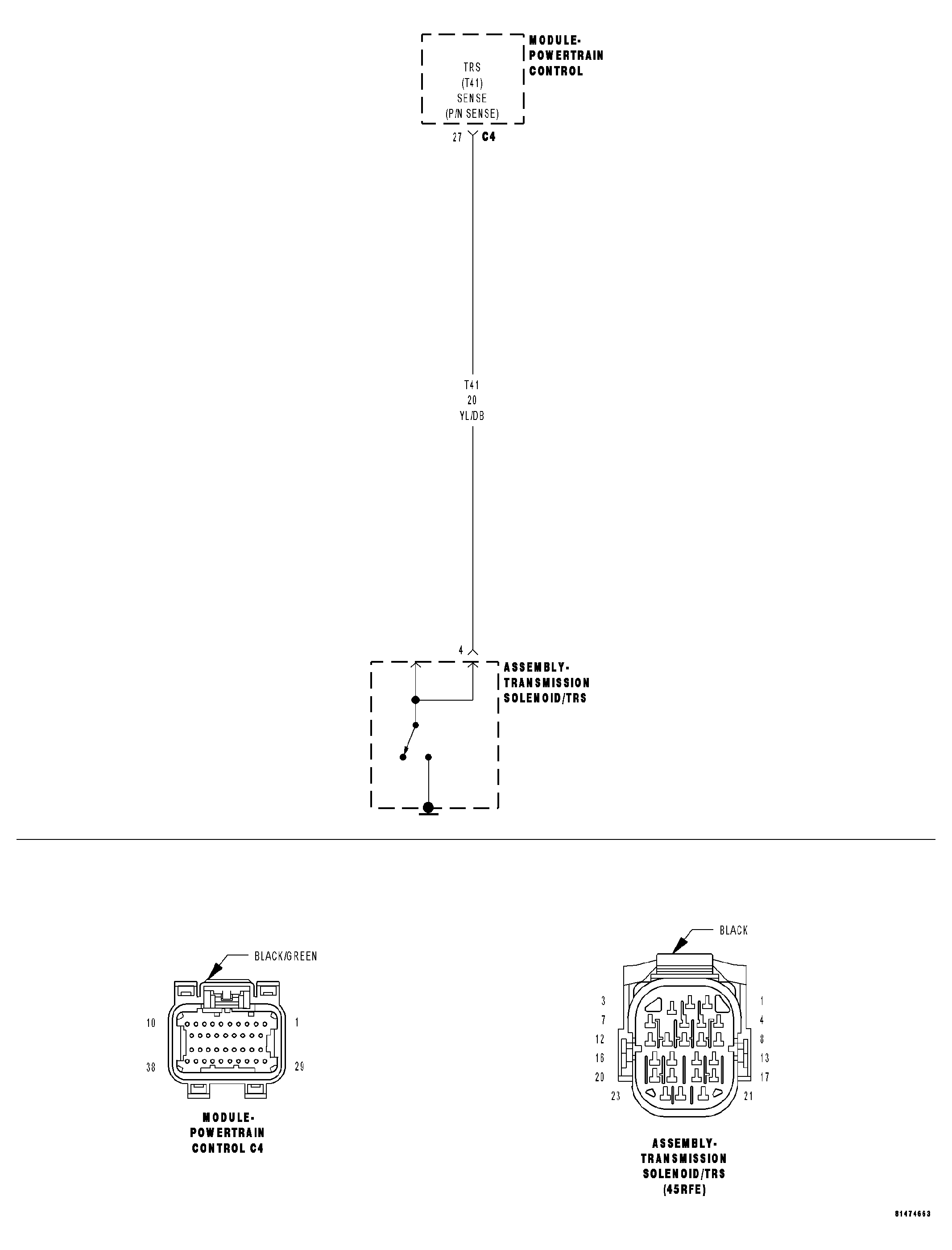

Fig 1: Transmission Range Sensor Circuit Schematic
GC0027186Courtesy of CHRYSLER LLC
