Circuit Schematic

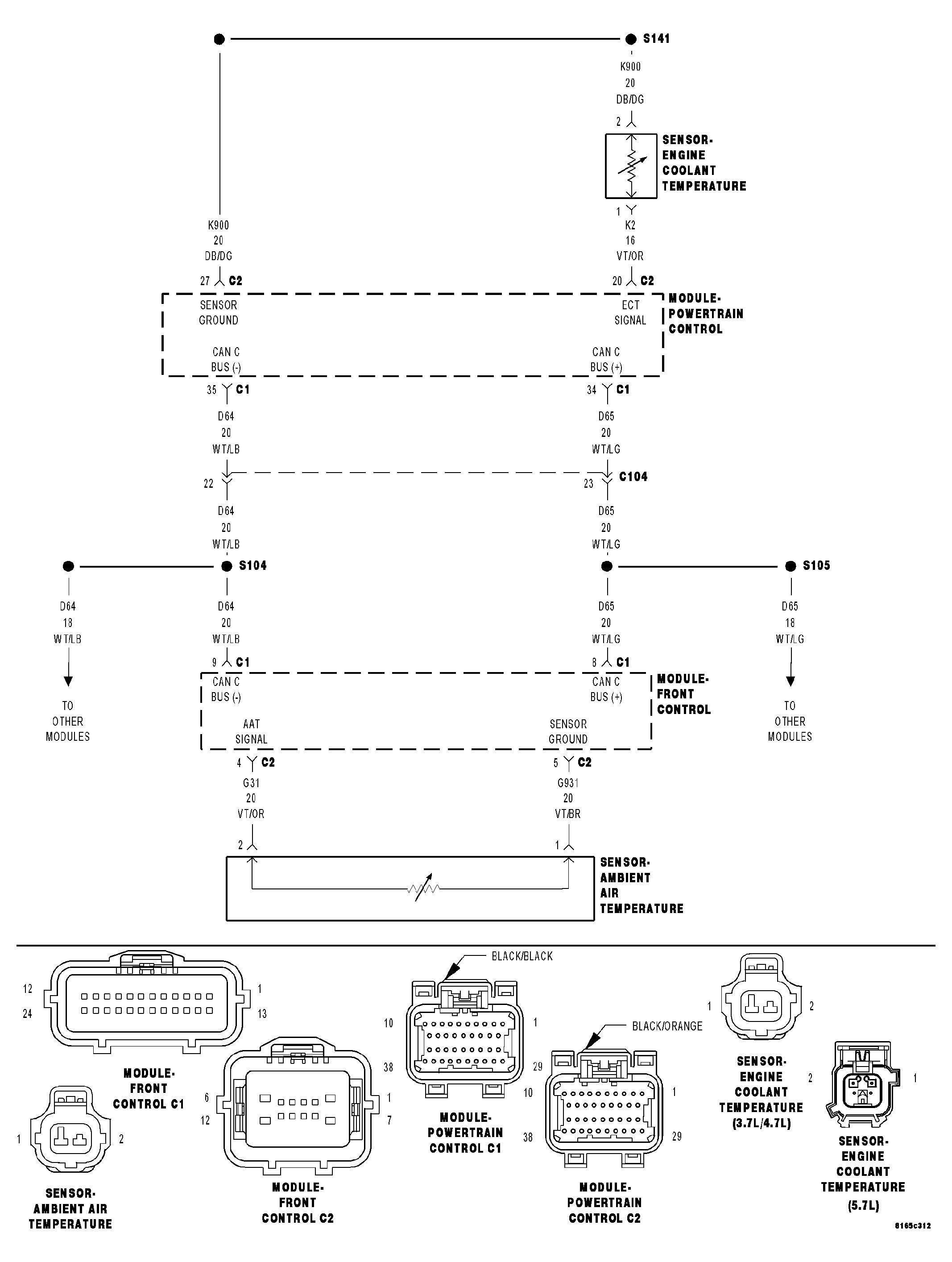

Fig 1: Engine Coolant Temperature Sensor & Ambient Air Temperature Sensor Circuit Schematic
GC0044750Courtesy of CHRYSLER LLC
