Alternator

Component ID: 100
Component : GENERATOR

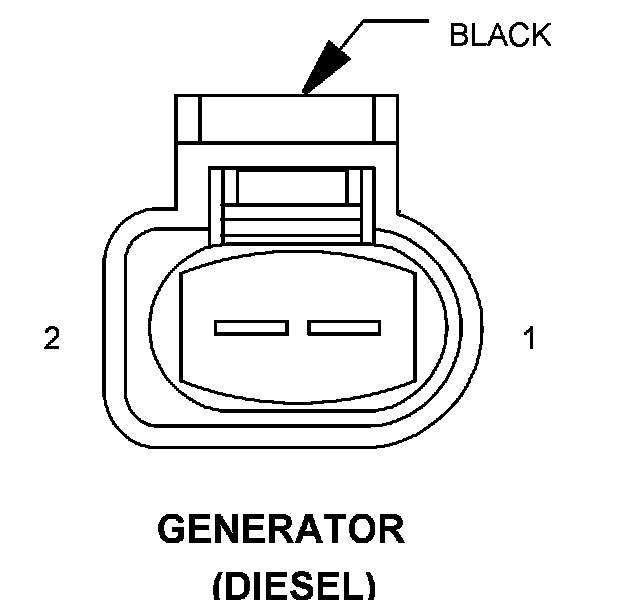

Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 CHARGE INDICATOR SIGNAL G329 20VT/OR
2 GEN OUTPUT SIGNAL K92 20BR/YL

Component Location - 14




Component Location - 18

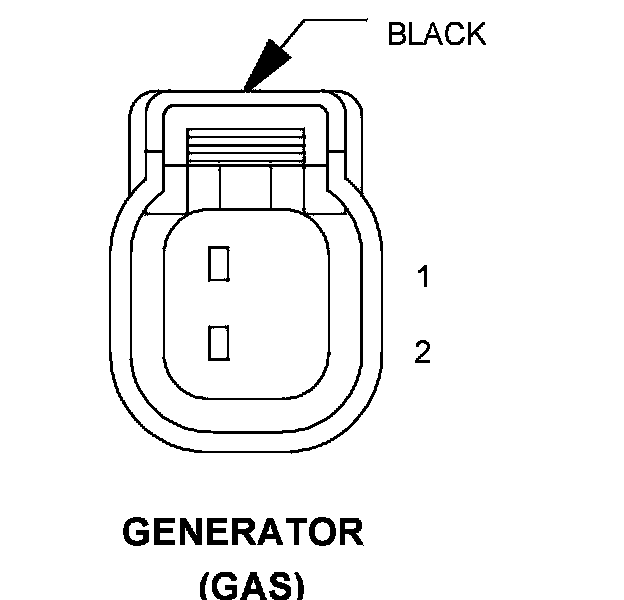

Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 GEN FIELD CONTROL K20 20BR/GY
2 GEN SENSE A804 20RD/GY

Component Location - 14




Component Location - 18

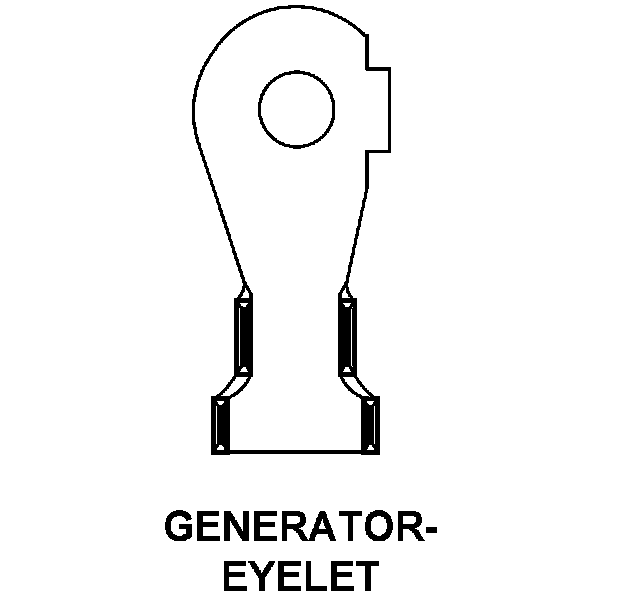

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1




Pin Description Circuit
1 B(+) A801 4RD/GY
Pin Description Circuit
1 B(+) A801 6RD/GY

Component Location - 14




Component Location - 18
