Brake Fluid Level Sensor/Switch

Component ID: 292
Component : SENSOR-BRAKE FLUID LEVEL

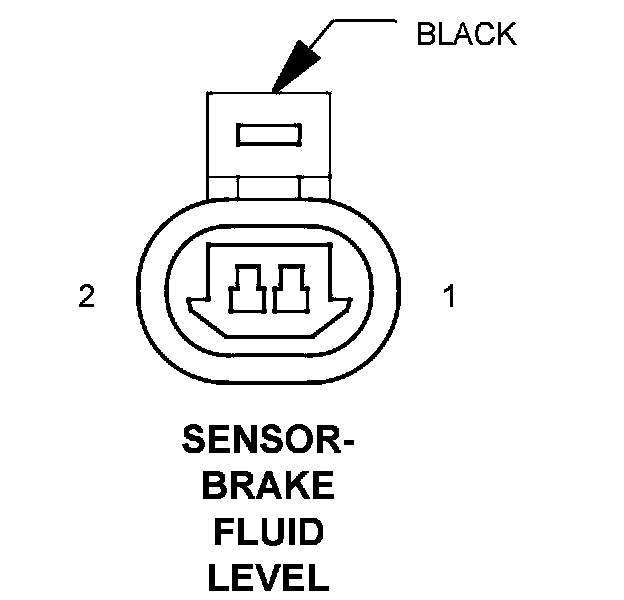

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : BLACK
# of pins : 2




Pin Description Circuit
1 BRAKE FLUID LEVEL SWITCH SENSE B20 20DG/RD
2 GROUND Z925 20BK/YL

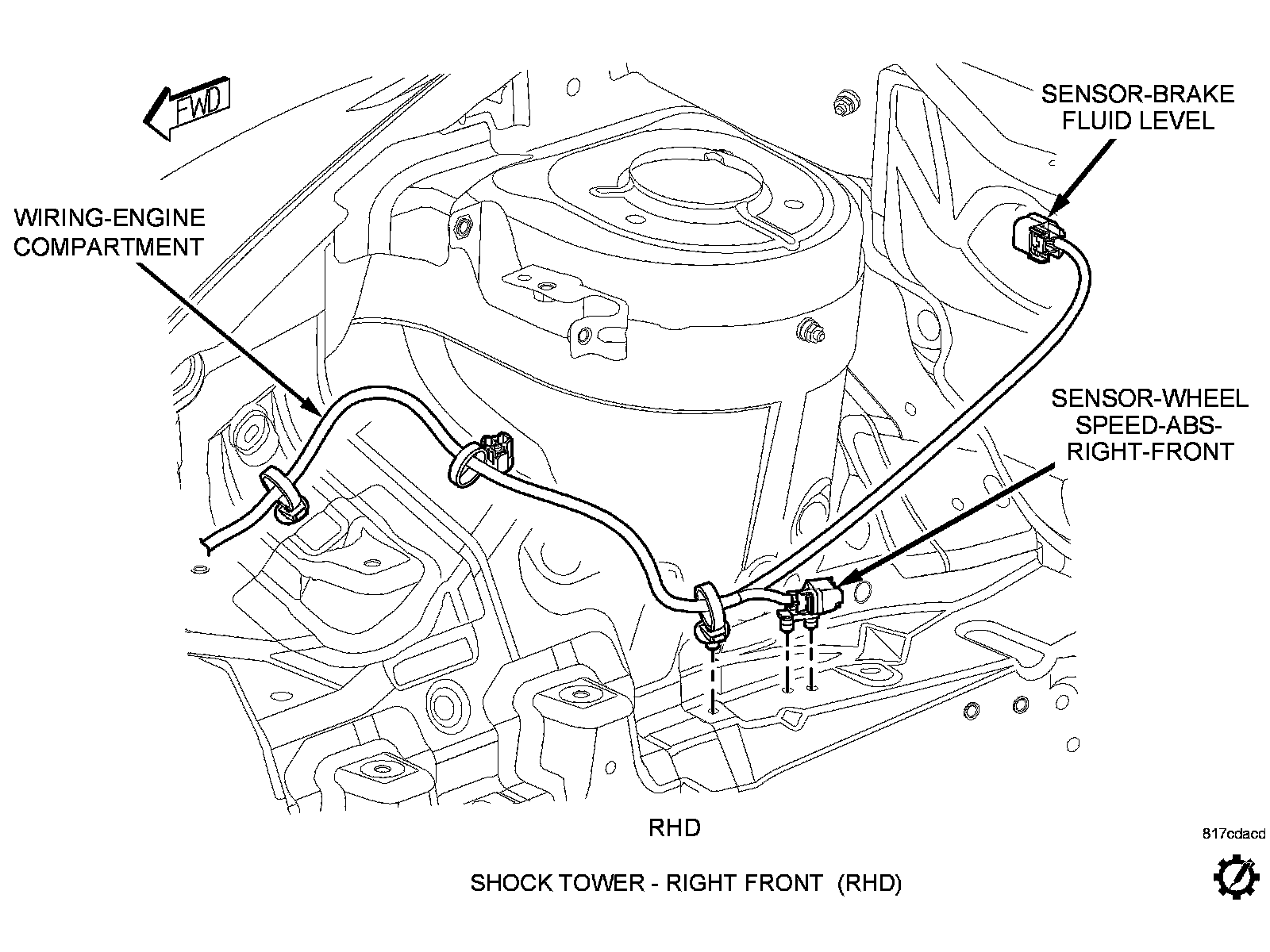

Component Location - 6




Component Location - 8
