Evaporator Temperature Sensor / Switch

Component ID: 301
Component : SENSOR-EVAPORATOR TEMPERATURE

Connector:
Name : SENSOR-EVAPORATOR TEMPERATURE
Color : NATURAL
# of pins : 2




Pin Description Circuit
1 EVAPORATOR TEMPERATURE SENSOR SIGNAL C21 20DB/LG
2 SENSOR GROUND C121 20DB/DG

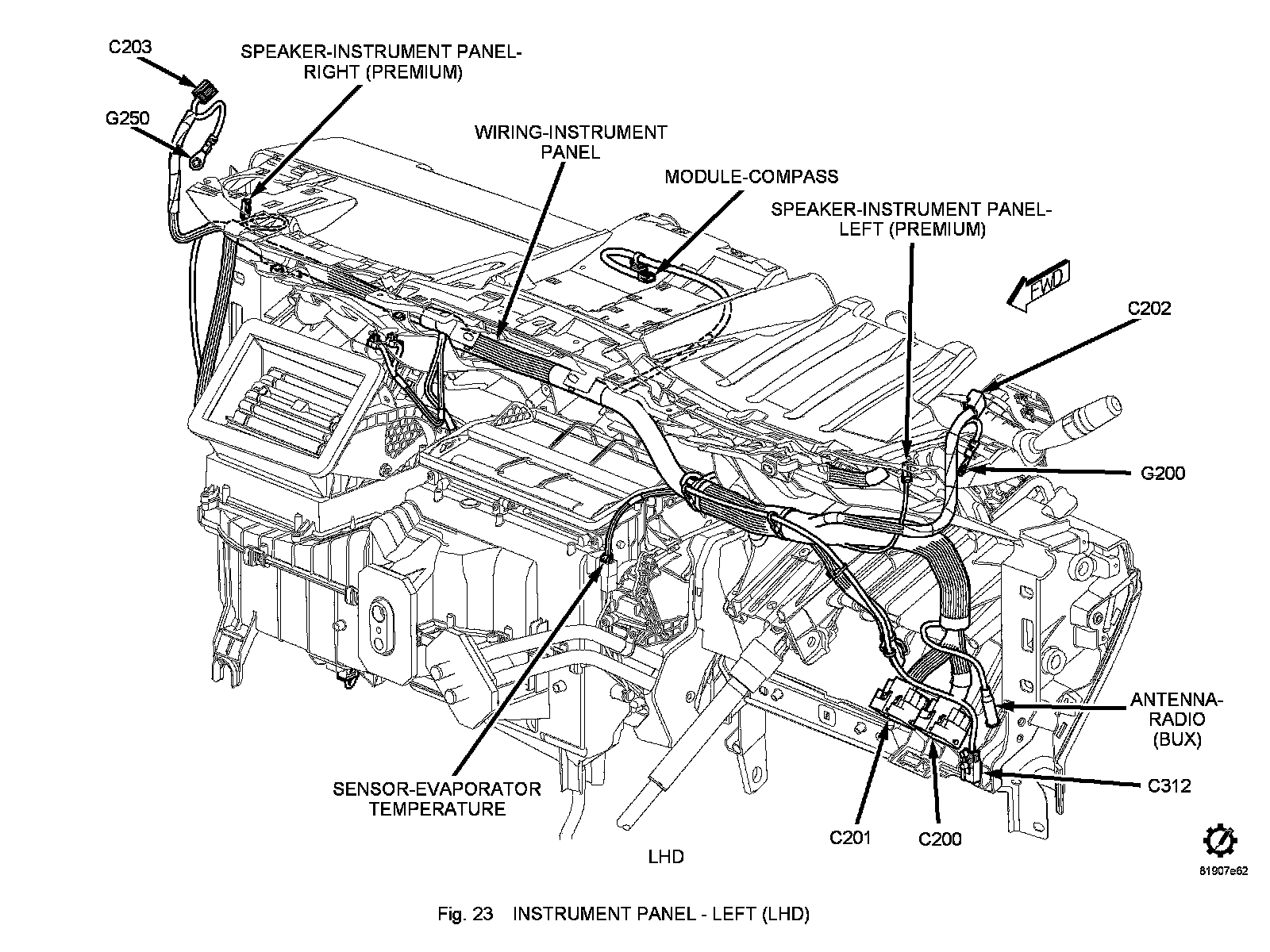

Component Location - 23




Component Location - 24




Component Location - 28




Component Location - 29
