Sensor-Front Impact-Right

Component ID: 303
Component : SENSOR-FRONT IMPACT-RIGHT

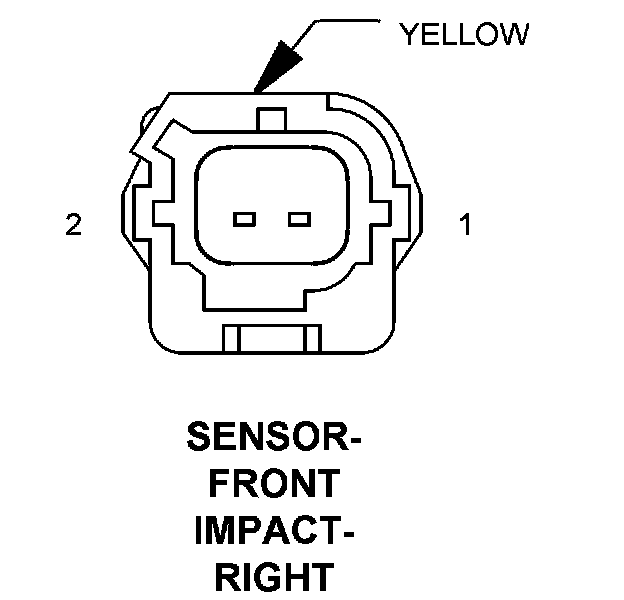

Connector:
Name : SENSOR-FRONT IMPACT-RIGHT
Color : YELLOW
# of pins : 2




Pin Description Circuit
1 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/OR
2 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20VT/LB

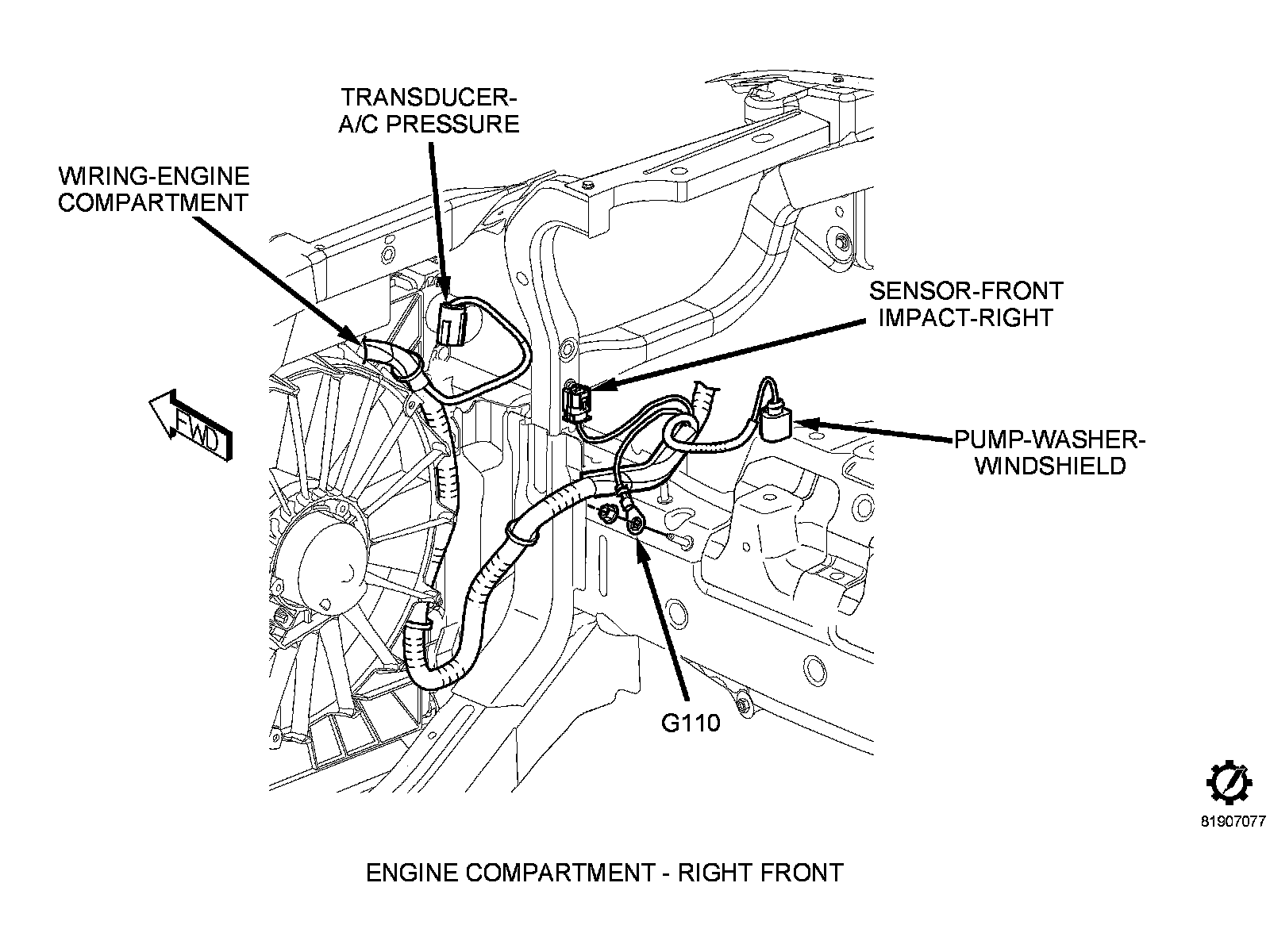

Component Location - 2

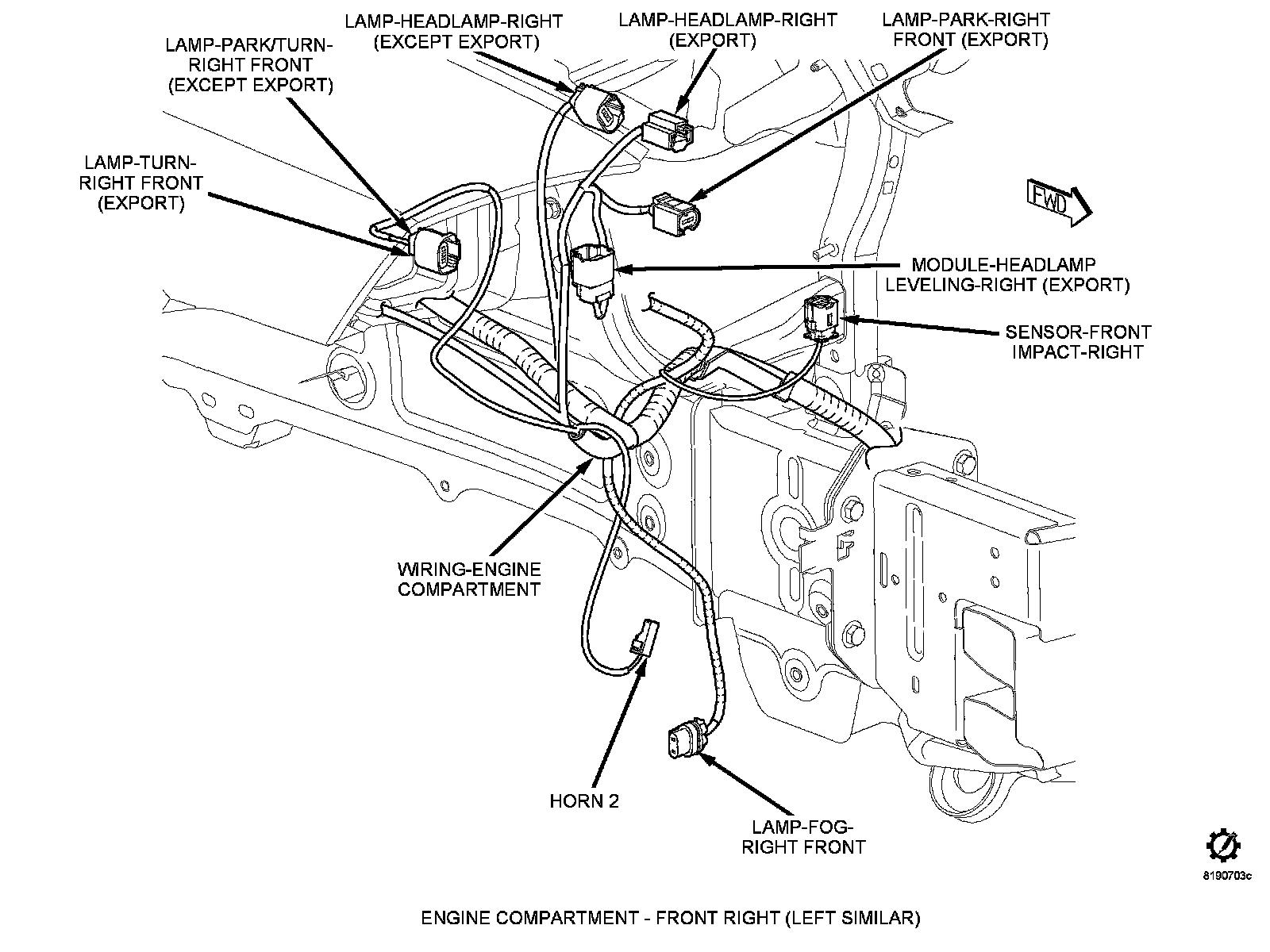

Component Location - 4
