Switch-Power Window-Left Rear

Component ID: 358
Component : SWITCH-POWER WINDOW-LEFT REAR

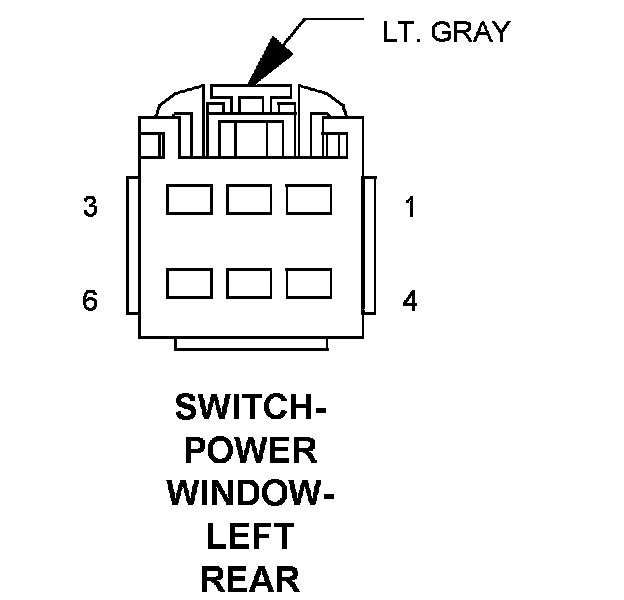

Connector:
Name : SWITCH-POWER WINDOW-LEFT REAR
Color : LT. GRAY
# of pins : 6




Pin Description Circuit
1 MASTER WINDOW SWITCH LEFT REAR (DOWN) Q611 14OR/GY
2 LEFT REAR WINDOW DRIVER (DOWN) Q211 14TN/LB
3 LEFT REAR WINDOW DRIVER (UP) Q111 14TN/YL
4 MASTER WINDOW SWITCH LEFT REAR (UP) Q411 14OR/WT
5 - -
6 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/RD

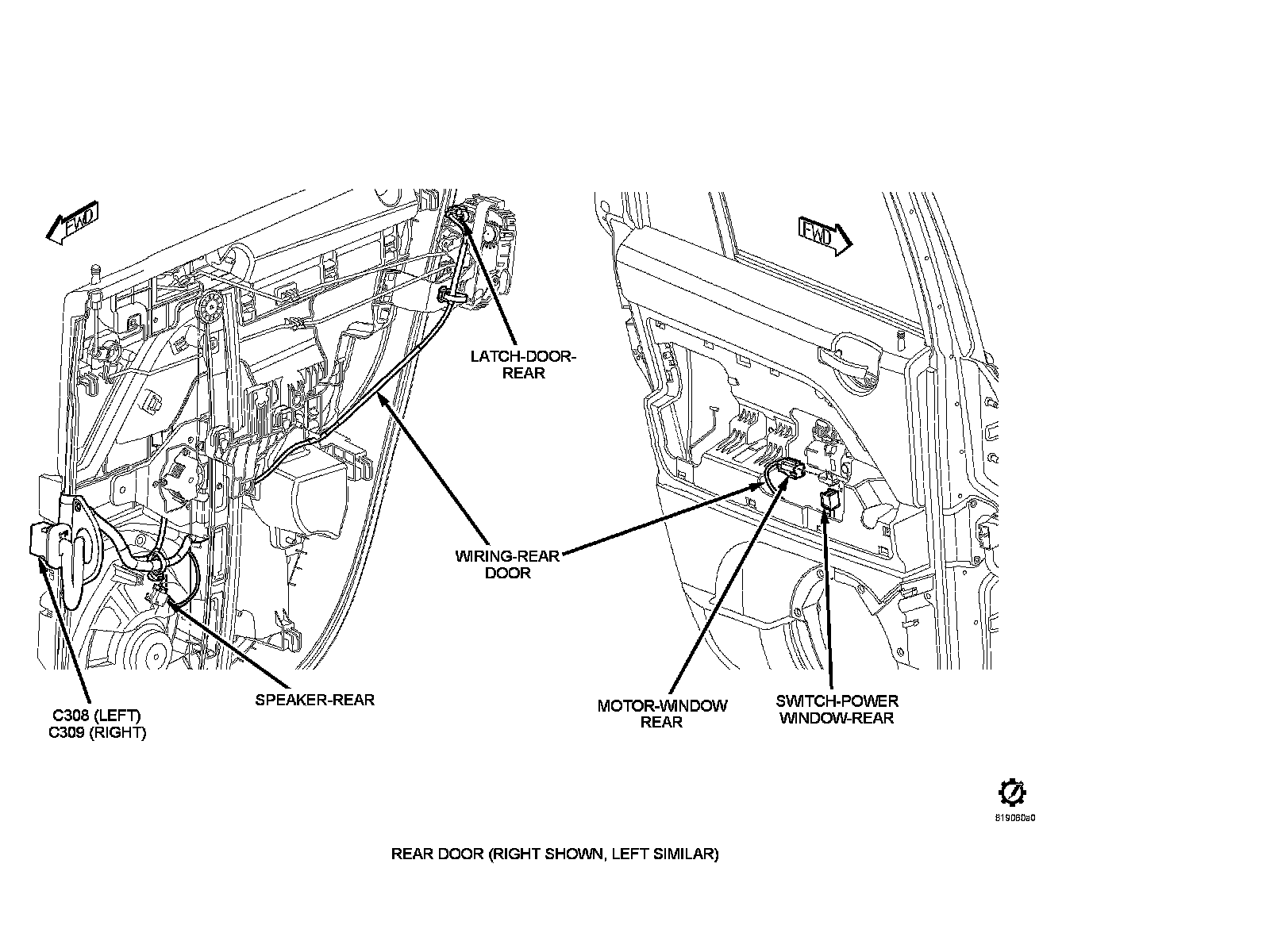

Component Location - 54
