Sensor-Seat Track Position-Driver

Component ID: 315

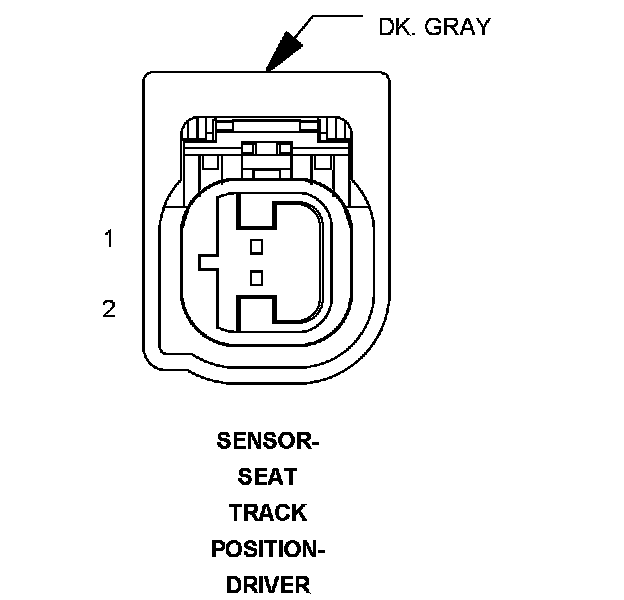

Component : SENSOR-SEAT TRACK POSITION-DRIVER

Connector:
Name : SENSOR-SEAT TRACK POSITION-DRIVER
Color : DK. GRAY
# of pins : 2




Pin Description Circuit
1 DRIVER SEAT POSITION SENSOR DATA R261 20LB/TN
2 DRIVER SEAT POSITION SENSOR VOLTAGE R263 20LB/BK

Component Location - 55
