Sensor-Seat Track Position-Passenger

Component ID: 316

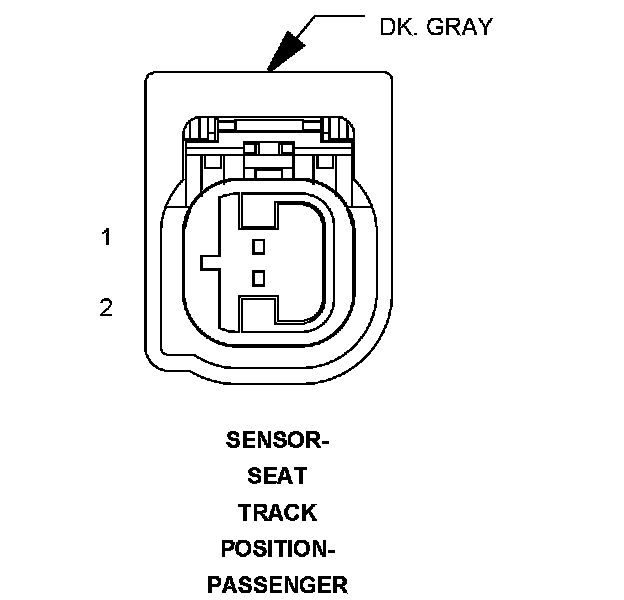

Component : SENSOR-SEAT TRACK POSITION-PASSENGER

Connector:
Name : SENSOR-SEAT TRACK POSITION-PASSENGER
Color : DK. GRAY
# of pins : 2




Pin Description Circuit
1 PASSENGER SEAT POSITION SENSOR DATA R262 20WT/LB
2 PASSENGER SEAT POSITION SENSOR VOLTAGE R264 20VT/LB

Component Location - 55
