Steering Angle Sensor, Traction Control

Component ID: 325

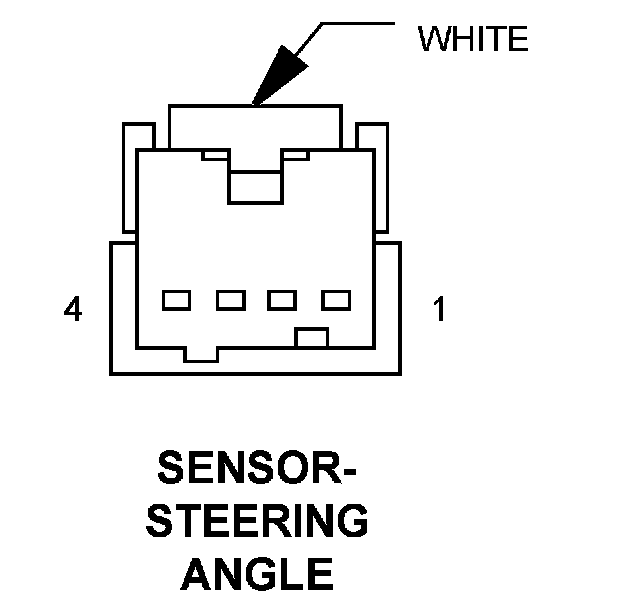

Component : SENSOR-STEERING ANGLE

Connector:
Name : SENSOR-STEERING ANGLE
Color : WHITE
# of pins : 4




Pin Description Circuit
1 CAN C BUS (+) D265 20DB/LB
Pin Description Circuit
1 CAN C BUS (+) D65 20WT/BK
2 CAN C BUS (-) D264 20DB/WT
2 CAN C BUS (-) D64 20WT/LB
3 GROUND Z936 20BK/LB
3 GROUND Z937 20BK/YL
4 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/GY

Component Location - 27




Component Location - 29




Component Location - 31
