Traction Control Relay

Component ID: 186

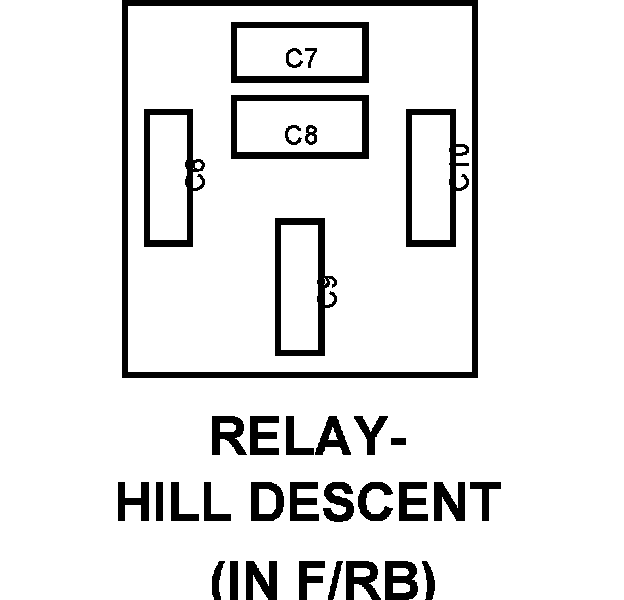

Component : RELAY-HILL DESCENT

Connector:
Name : RELAY-HILL DESCENT
Color :
# of pins : 0




C6 FUSED B(+) A924 20DG/WT
C7 STOP LAMP SWITCH OUTPUT L53 20DG/WT
C8 - -
C9 FUSED B(+) A924 20DG/WT
C10 HILL DESCENT RELAY CONTROL B122 20DG/LG
