Variable Induction Control Valve

Component ID: 373
Component : VALVE-MANIFOLD FLOW

Connector:

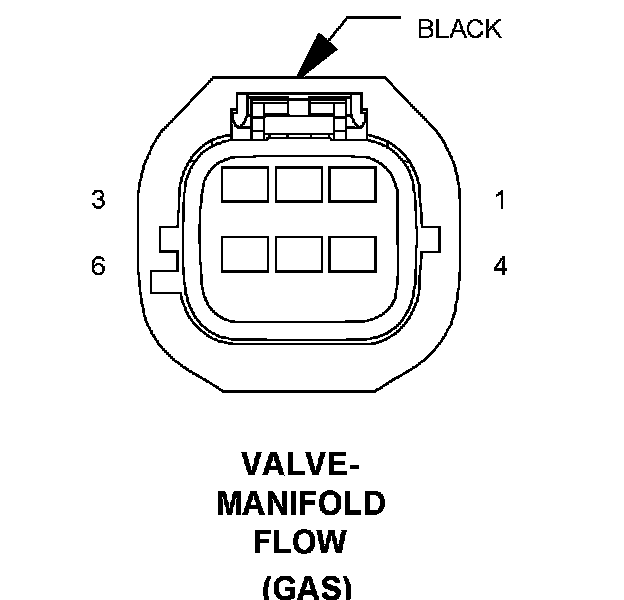

Name : VALVE-MANIFOLD FLOW
Color : BLACK
# of pins : 6
Qualifier : (GAS)




Pin Description Circuit
1 GROUND Z916 16BK
2 - -
3 MFV CONTROL K601 20BR/VT
4 SENSOR GROUND K900 20DB/DG
5 MFV SIGNAL K602 20YL/DB
6 5 VOLT SUPPLY K857 20BR/LG

Component Location - 14
