Accelerator Pedal Position Sensor: Locations

Component ID: 290

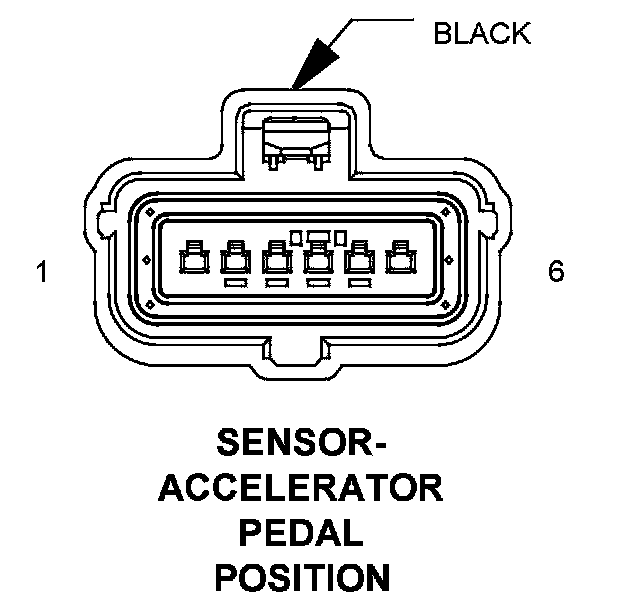

Component : SENSOR-ACCELERATOR PEDAL POSITION

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color : BLACK
# of pins : 6




Pin Description Circuit
1 APP SIGNAL 2 K29 20WT/BR
2 APP SENSOR GROUND 2 K400 20BR/VT
3 5 VOLT SUPPLY K854 20VT/BR
3 5 VOLT SUPPLY K858 20BR/GY
4 APP SIGNAL 1 K23 20BR/OR
5 APP SENSOR GROUND 1 K167 20BR/YL
6 5 VOLT SUPPLY K852 20BR/VT
6 5 VOLT SUPPLY F856 20YL/PK

Component Location - 43




Component Location - 46
