Sensor-Engine Coolant Temperature 2

Component ID: 300
Component : SENSOR-ENGINE COOLANT TEMPERATURE 2

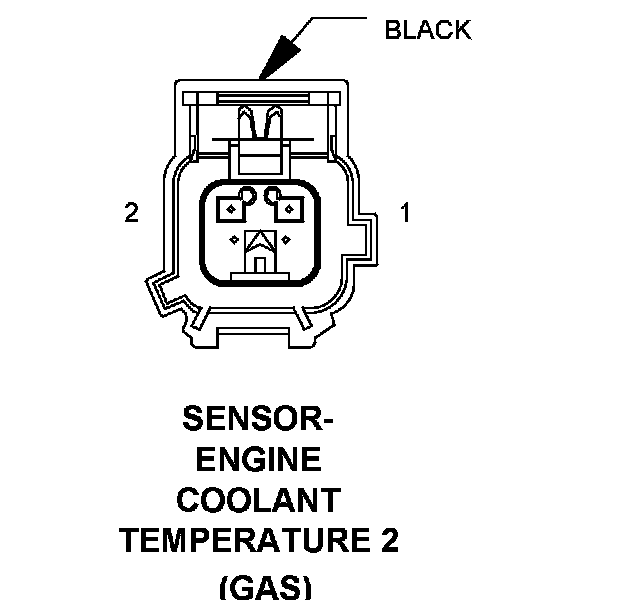

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE 2
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 SENSOR GROUND K915 20BR/WT
2 ECT 2 SIGNAL K222 20BR/YL

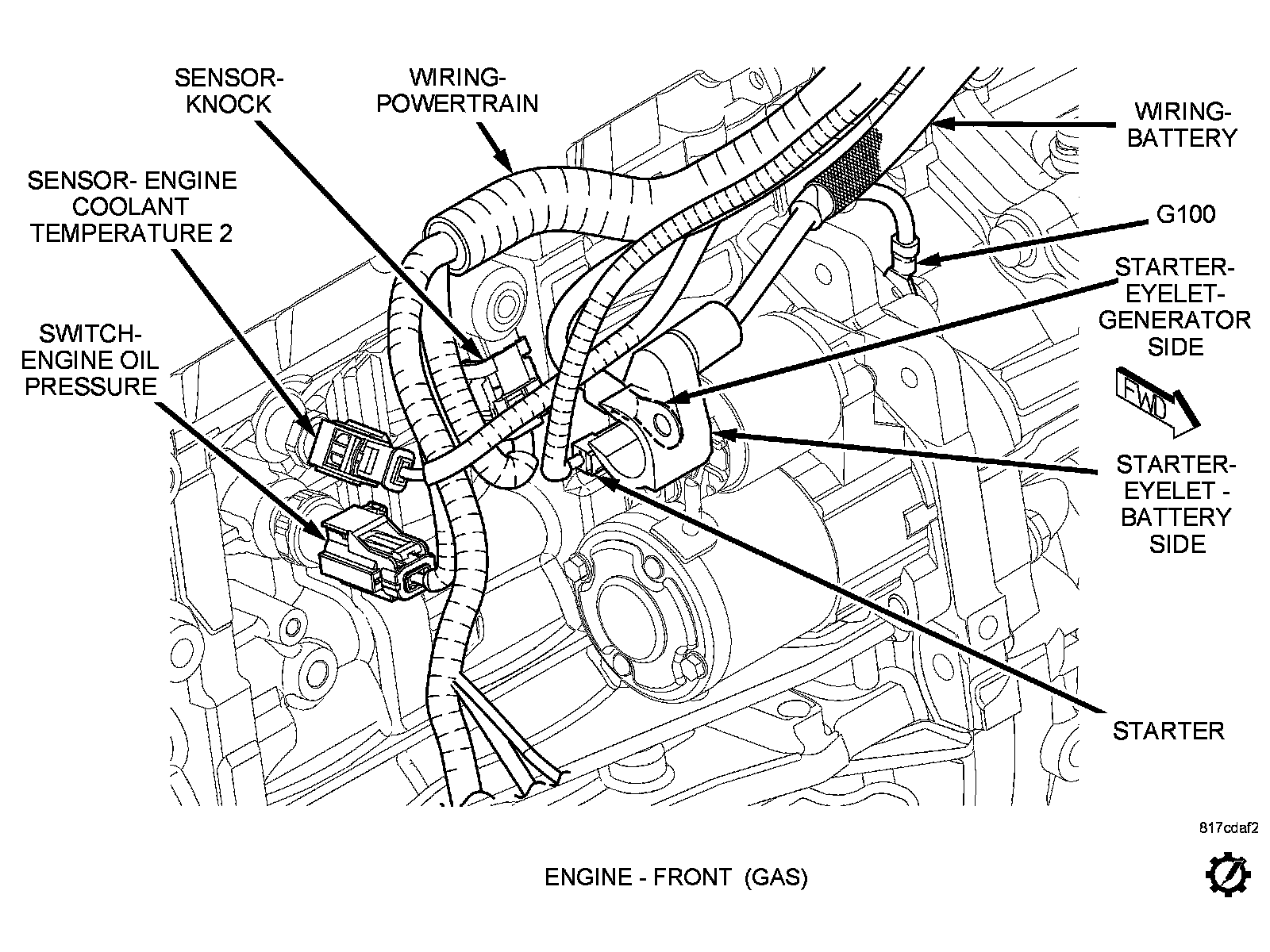

Component Location - 14




Component Location - 15
