System Specifications






SPECIFICATIONS

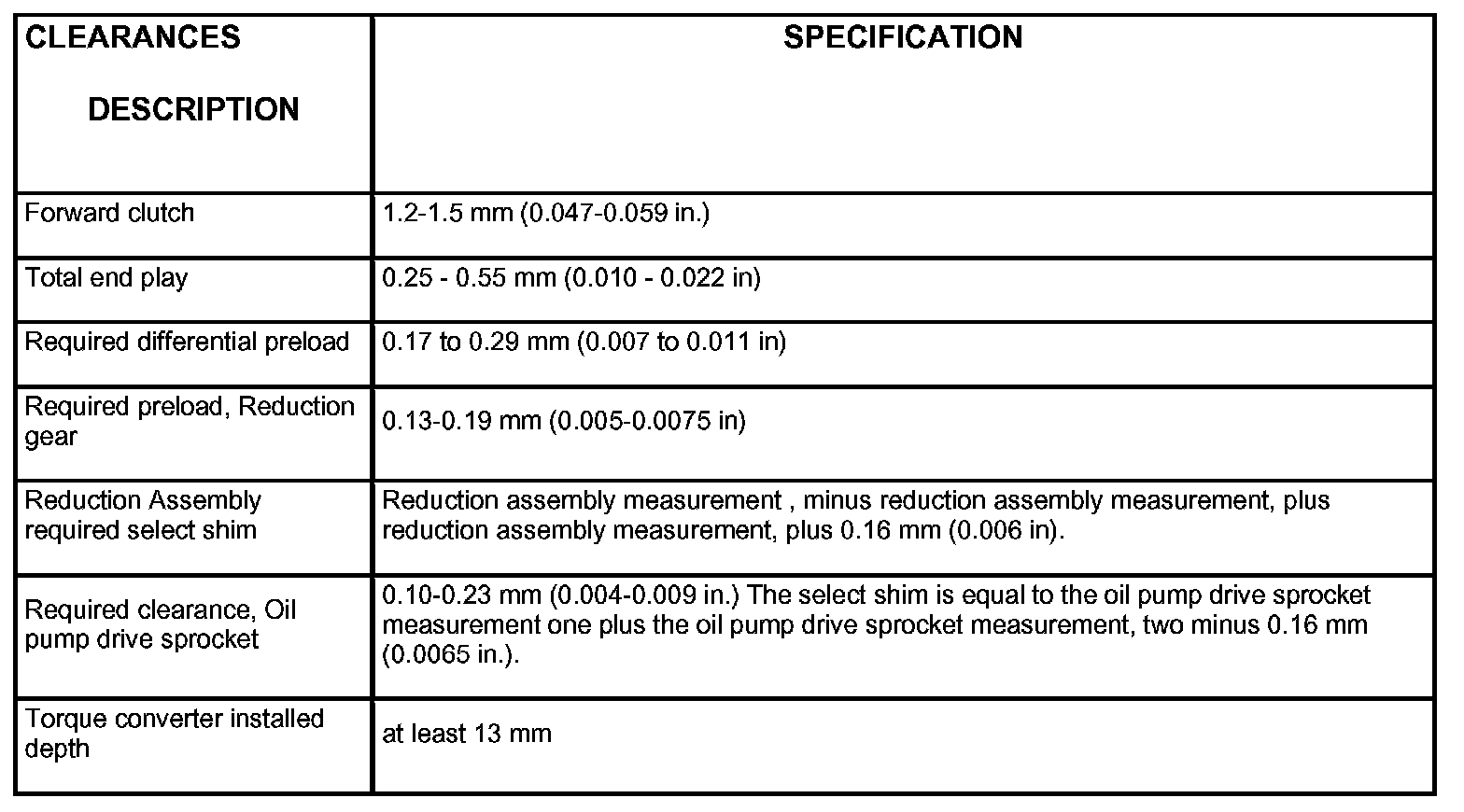

Clearance Specifications:

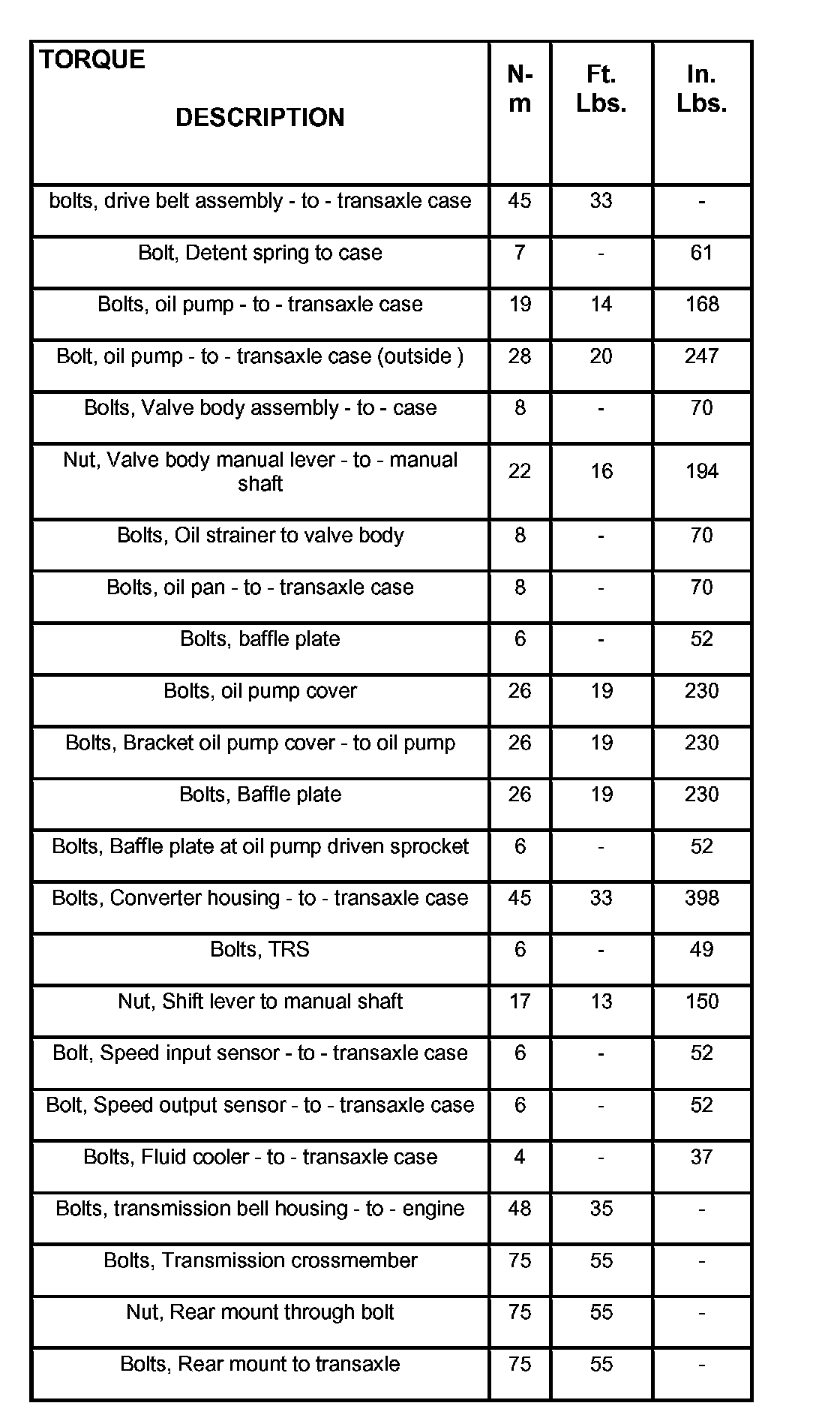

Torque Specifications (Part 1):

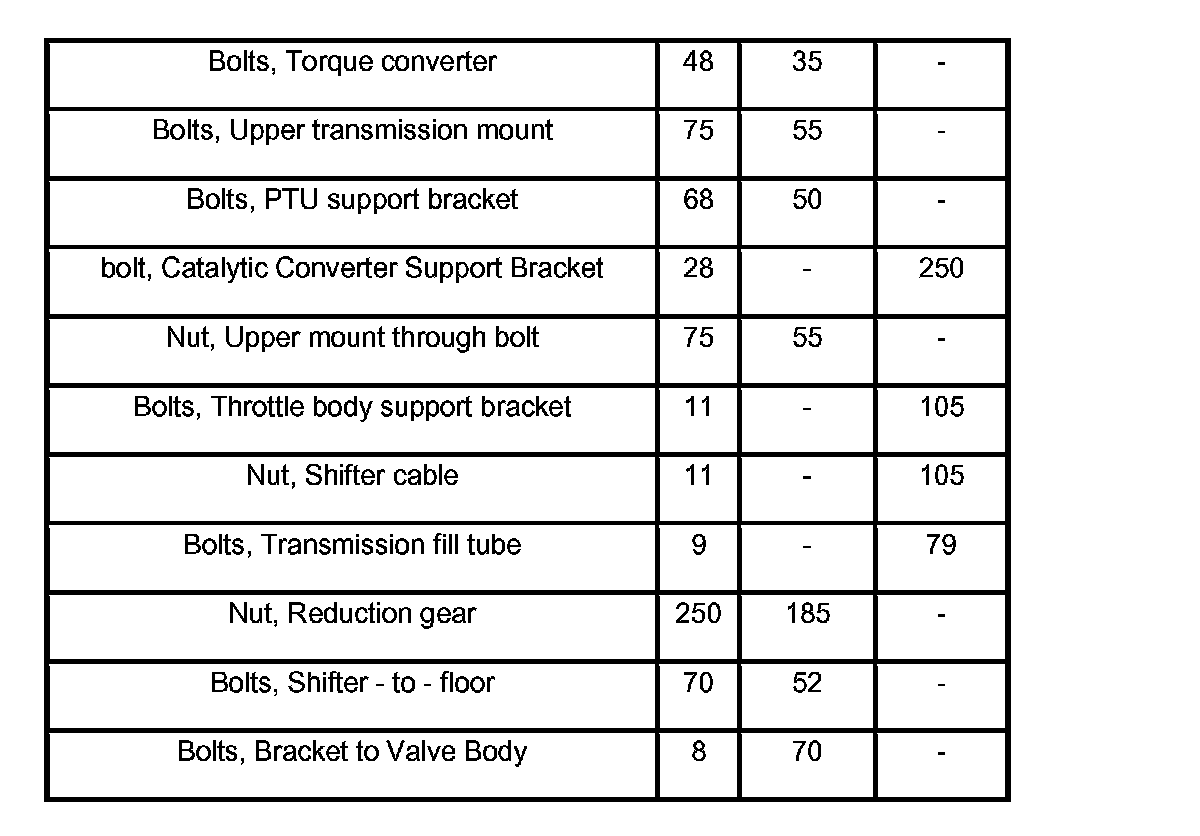

Torque Specifications (Part 2):





Driveplate-to-Crankshaft Bolts 95 Nm (70 ft. lbs.)
