Connecting Rod, Engine

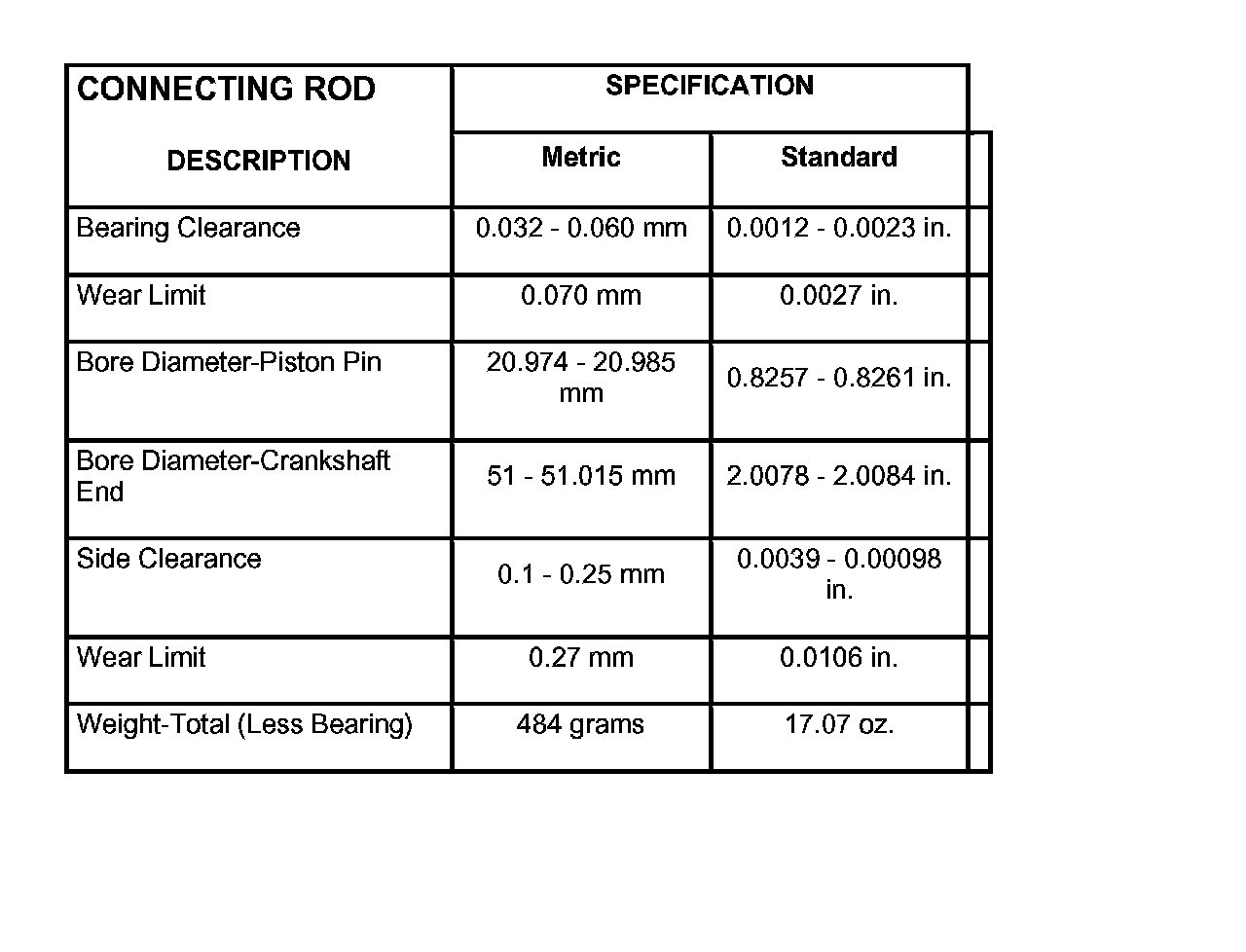

Connecting Rod:





Connecting Rod

Connecting Rod Cap-Bolts 20 Nm + 90� (15 ft. lbs. + 90�)
