Engine Torque Specifications






TORQUE

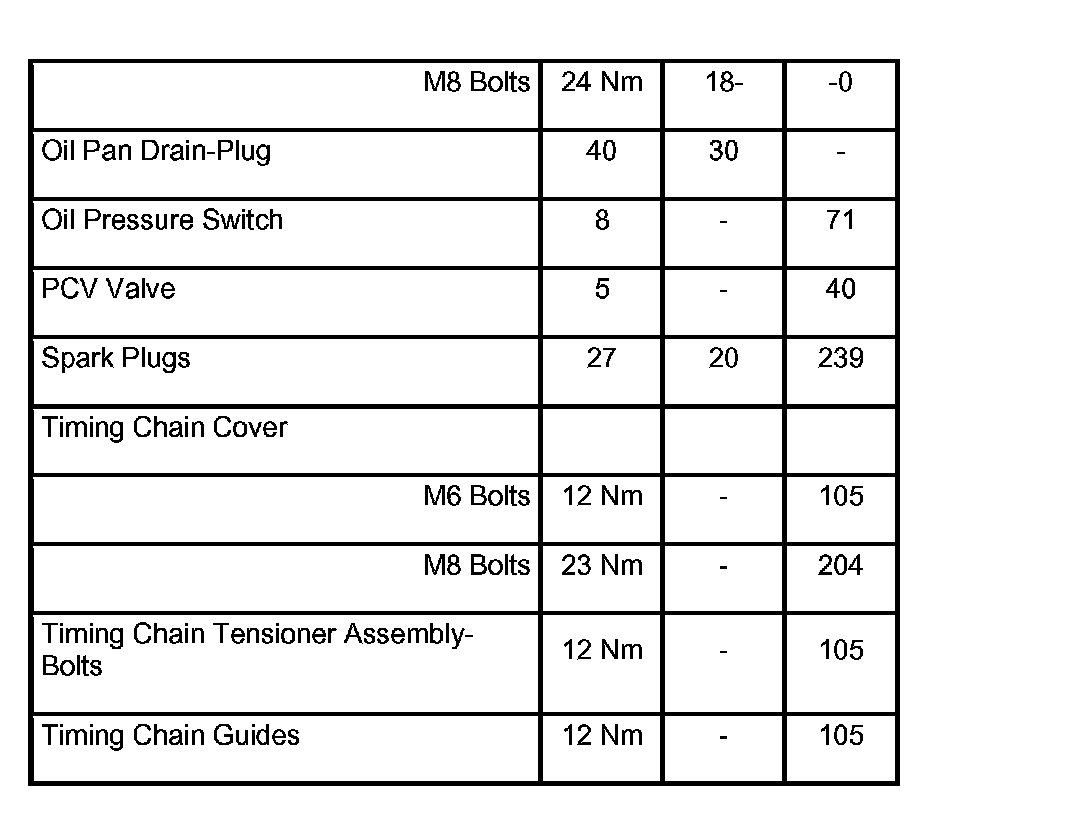

Torque (Part 1):





Torque (Part 1)

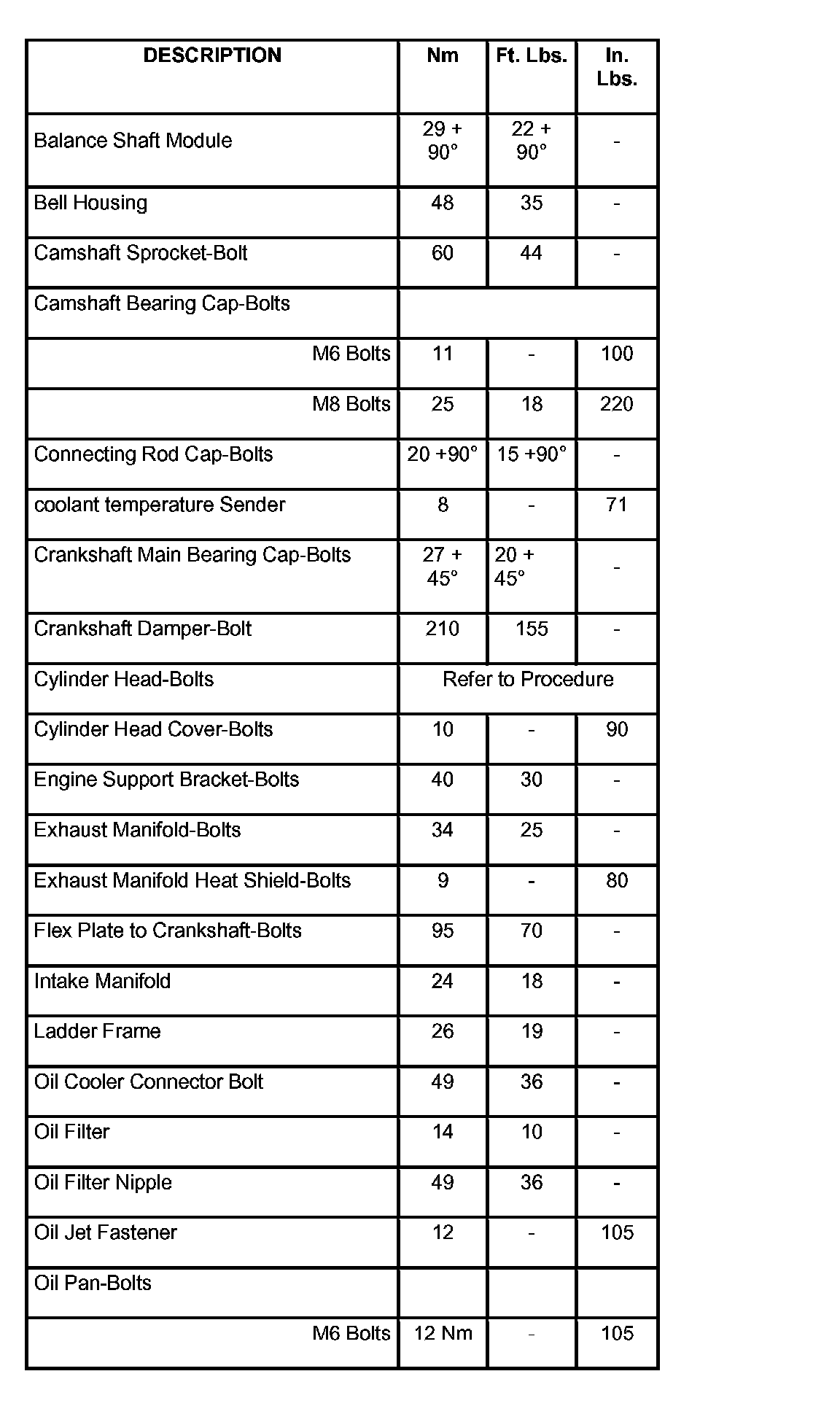

Torque (Part 2):





Torque (Part 2)
