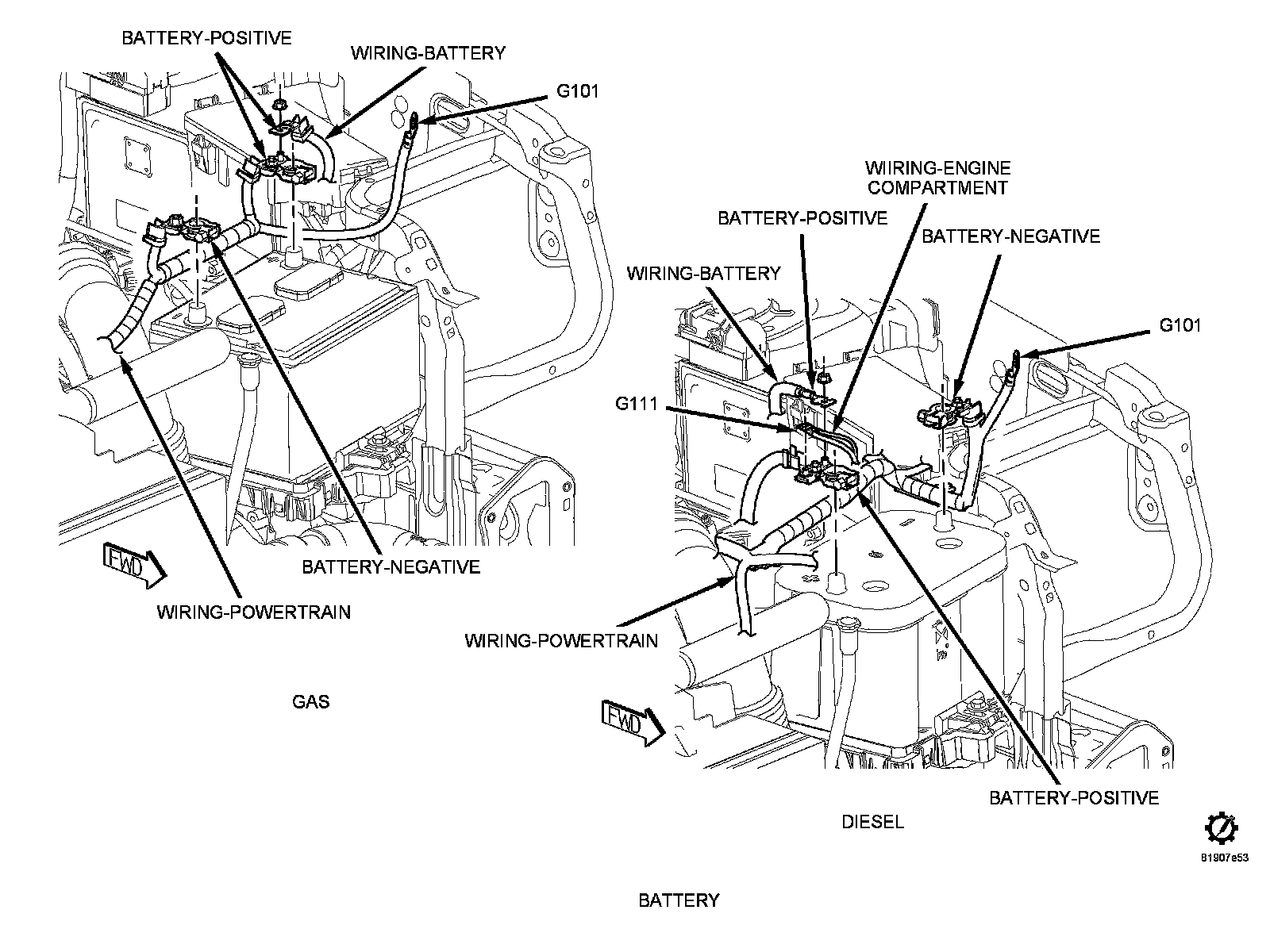

Battery: Locations

Component ID: 18
Component : BATTERY

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 GROUND Z901 4BK
Pin Description Circuit
1 GROUND Z912 6BK

Component Location - 14




Component Location - 18




Component Location - 22






Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 GROUND Z901 4BK
Pin Description Circuit
1 GROUND Z912 4BK

Component Location - 14




Component Location - 18




Component Location - 22






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A21 10RD/DB

Component Location - 14




Component Location - 18




Component Location - 22






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A0 4RD

Component Location - 14




Component Location - 18




Component Location - 22






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A282 10RD/BK
Pin Description Circuit
1 B(+) A281 14RD/DG

Component Location - 14




Component Location - 18




Component Location - 22






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 B(+) A0 6RD

Component Location - 14




Component Location - 18




Component Location - 22






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 B(+) A0 4RD

Component Location - 14




Component Location - 18




Component Location - 22
