Fuse Block
WARNING:
ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO RESTRAINTS - SERVICE INFORMATION
article
BEFORE ATTEMPTING ANY STEERING COLUMN OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
- Disconnect and isolate the battery negative cable.
- Remove the front bumper fascia. Refer to INSTALLATION .

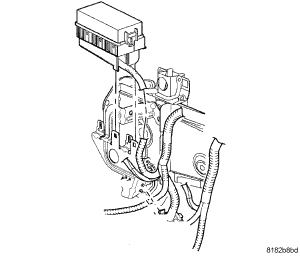

- Depress mounting clips and lift the fuse block off the bracket.
- Remove the wire harness and fuse block.
