Power Distribution Center

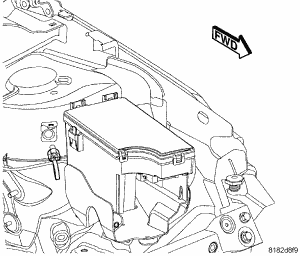

Fig 1: Locating Power Distribution Center
GC0053880Courtesy of CHRYSLER LLC
  1. Open hood.
  2. Disconnect and isolate the battery negative cable.
  3. Disconnect each of the Totally Integrated Power Module (TIPM) wire harness connectors.
  4. Remove the TIPM positive cable retaining nut and remove the cable from the stud.
  5. Depress the three mounting clips to disengage and remove the TIPM housing from its mounting bracket.
  6. Remove the TIPM from the vehicle.
