Control Units
CONTROL UNITS LOCATION

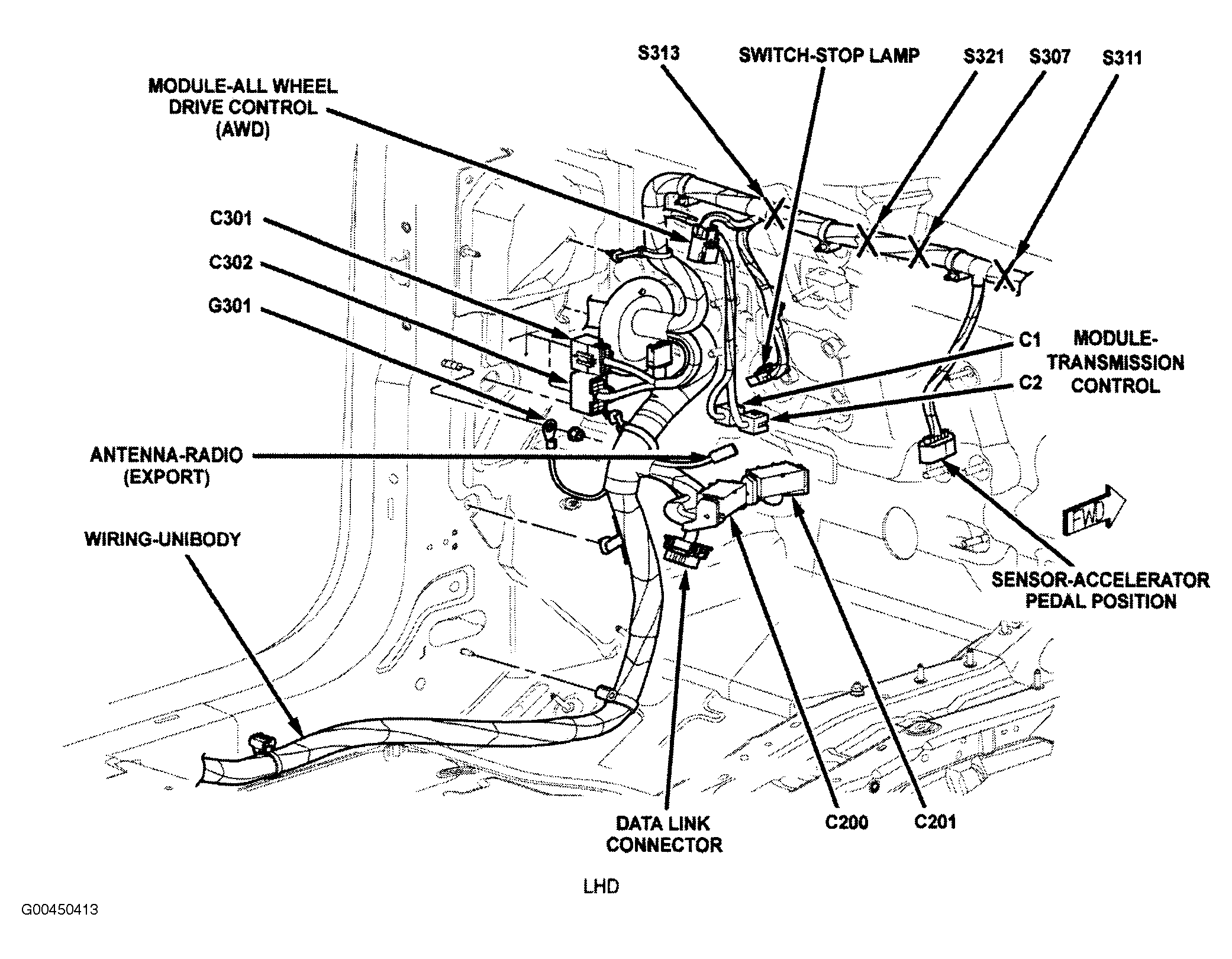

| Component | Location |
|---|---|
| All Wheel Drive Control Module (AWD) | Left kick panel near grommet to engine compartment. See Figure. |

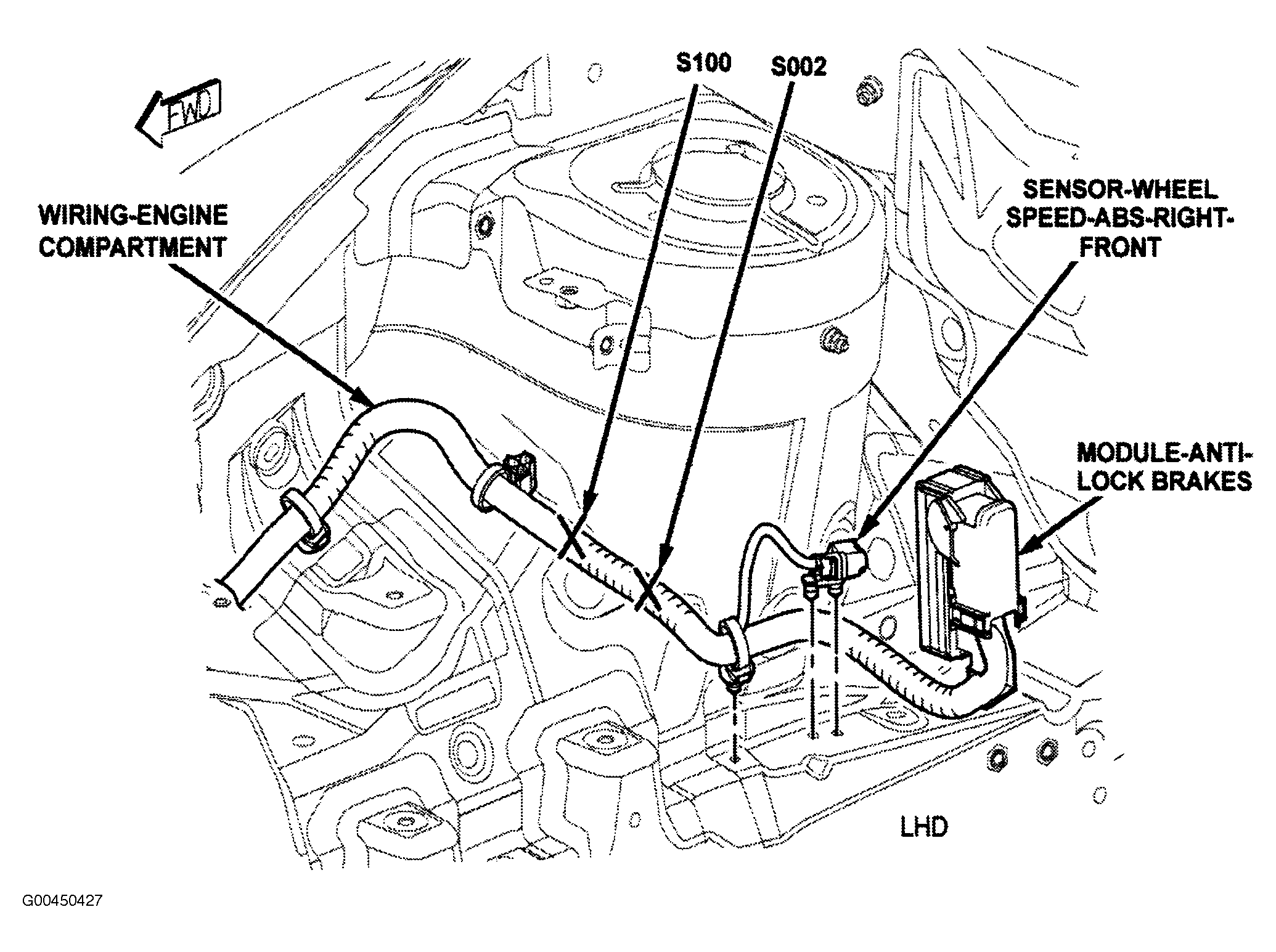

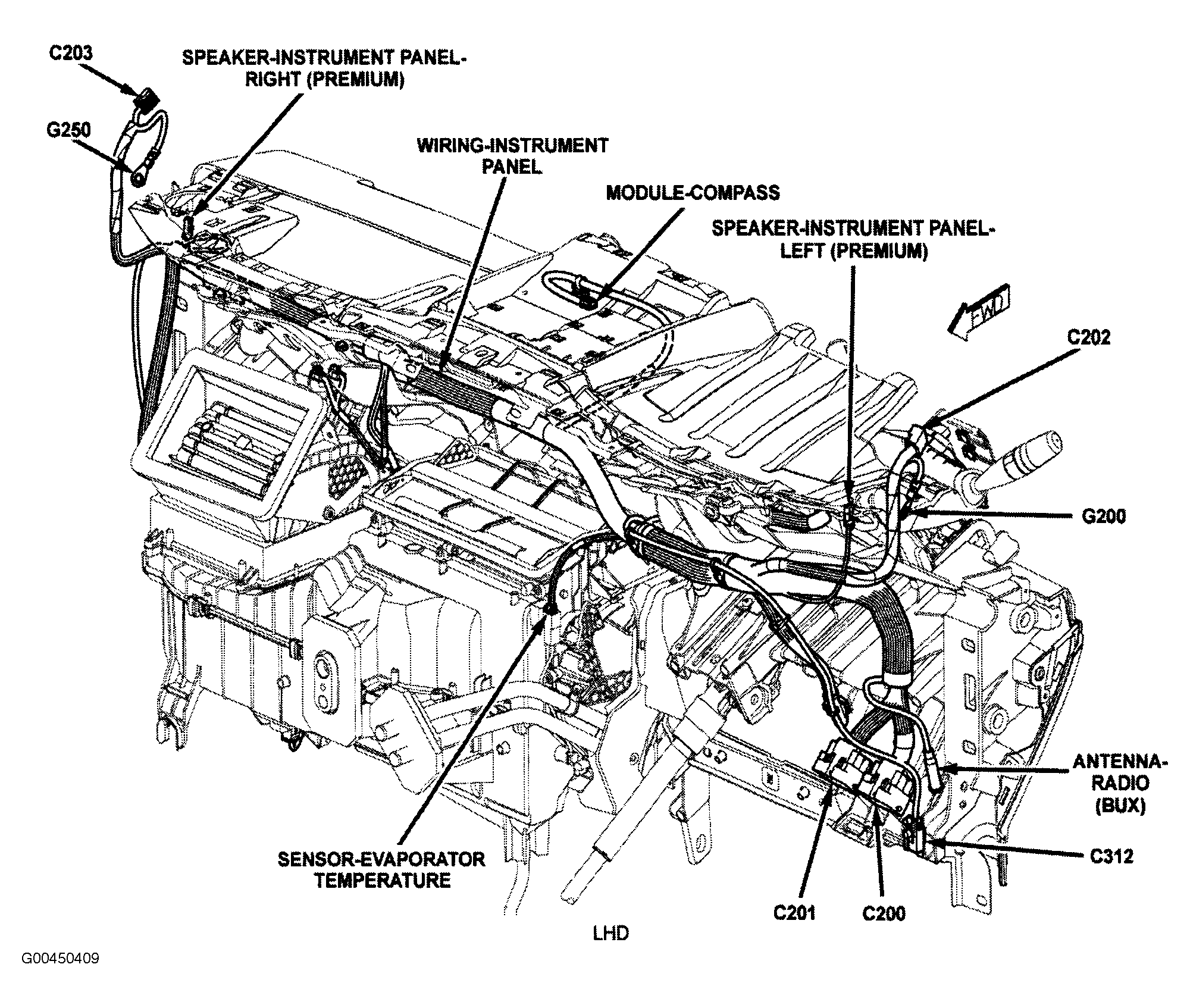

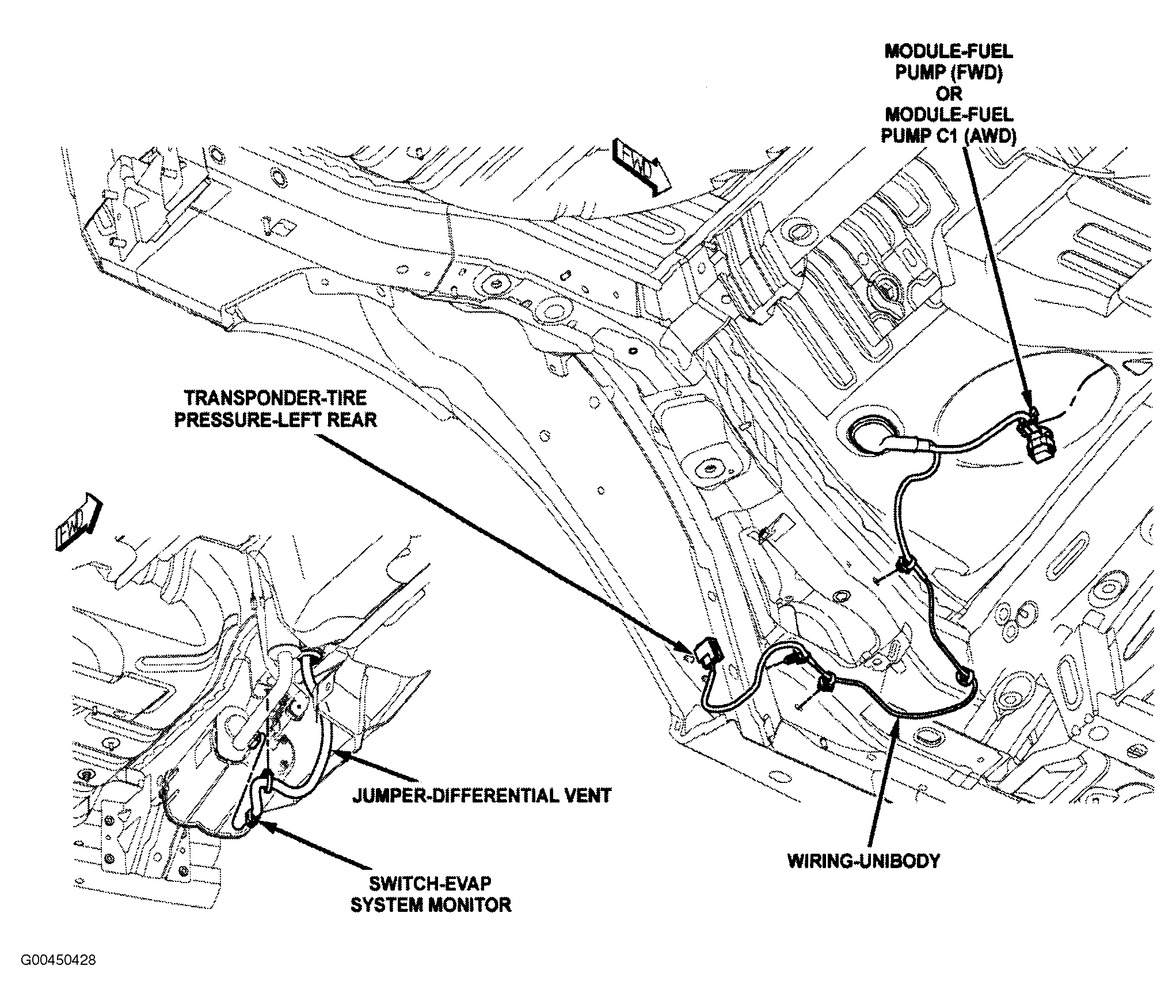

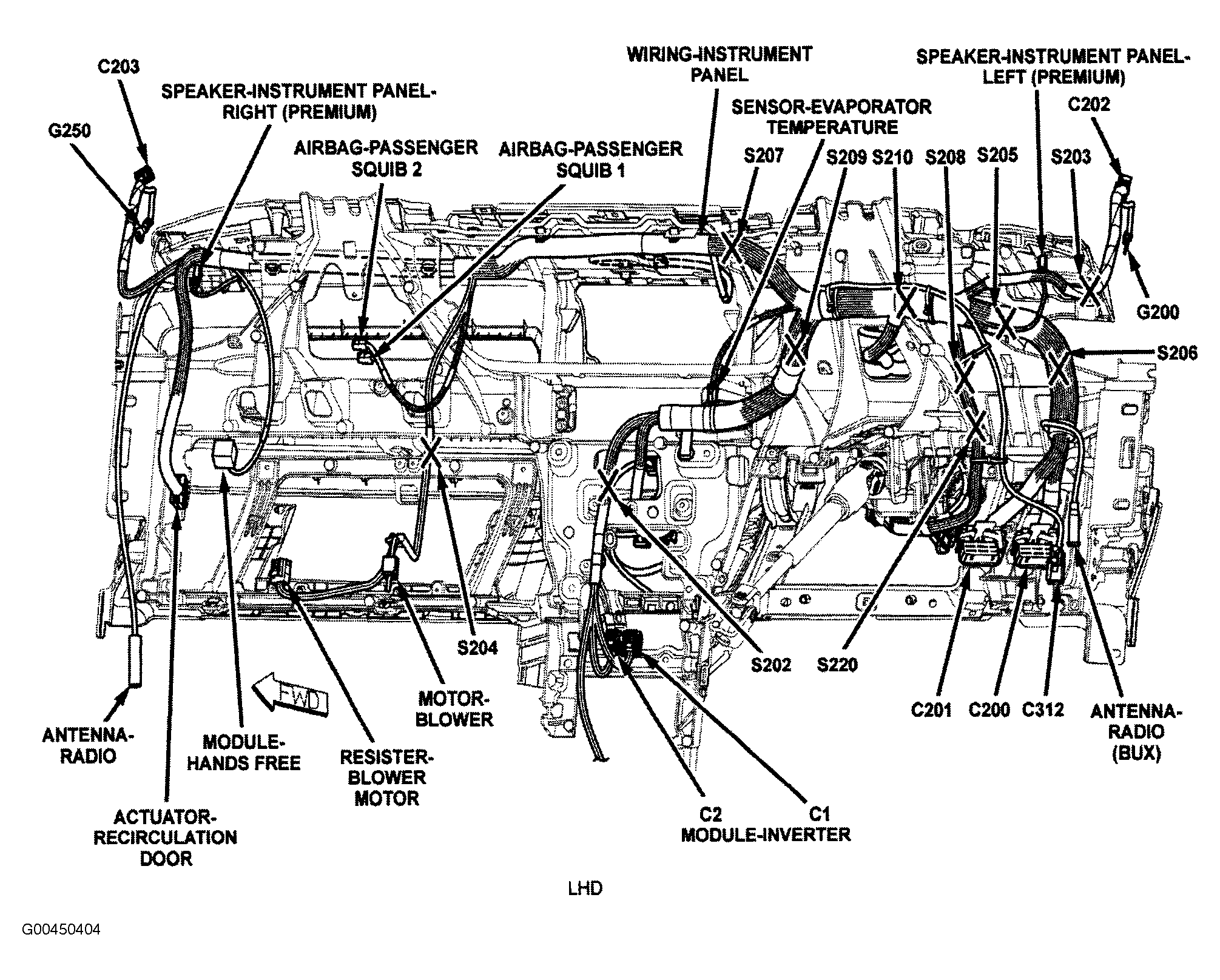

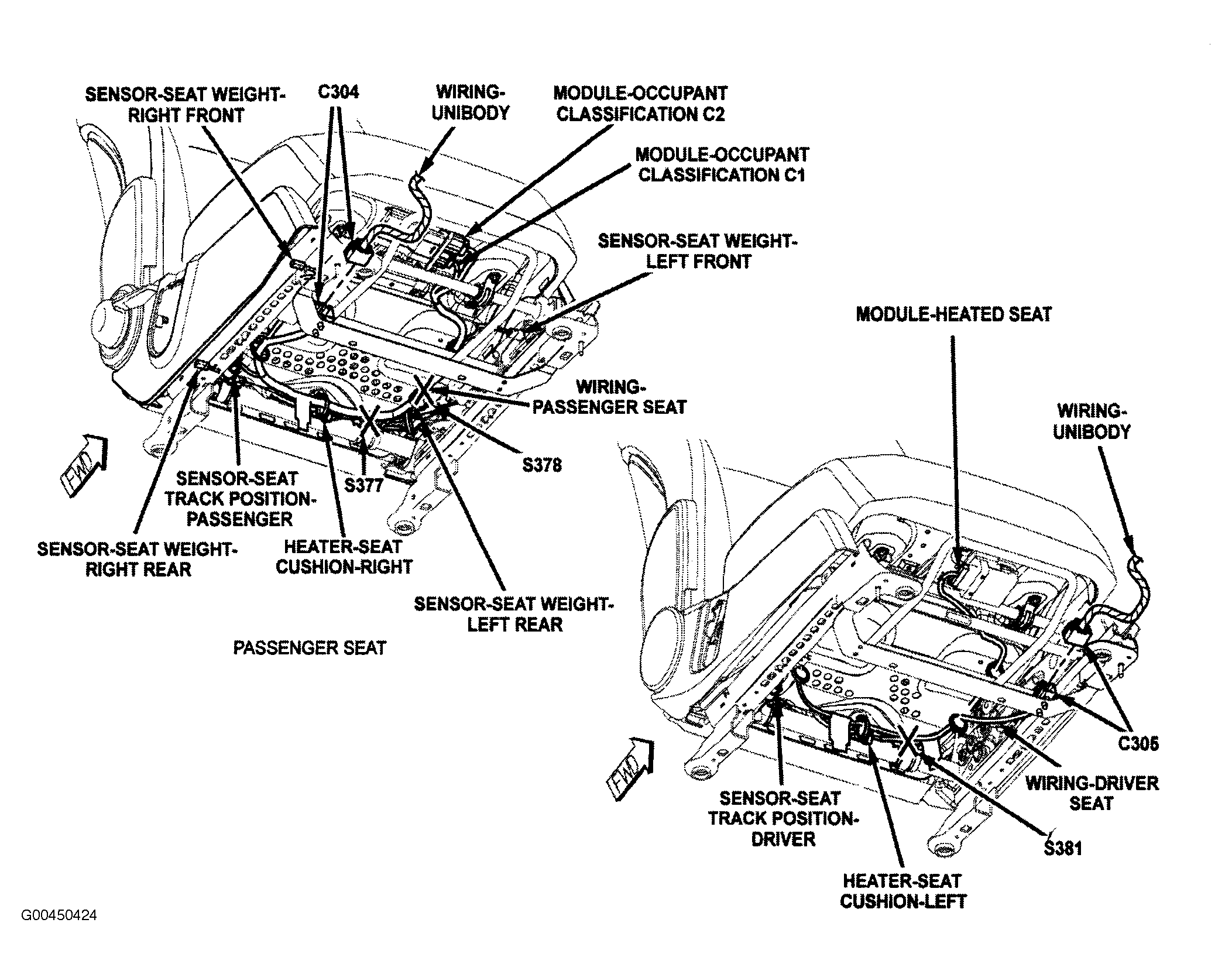

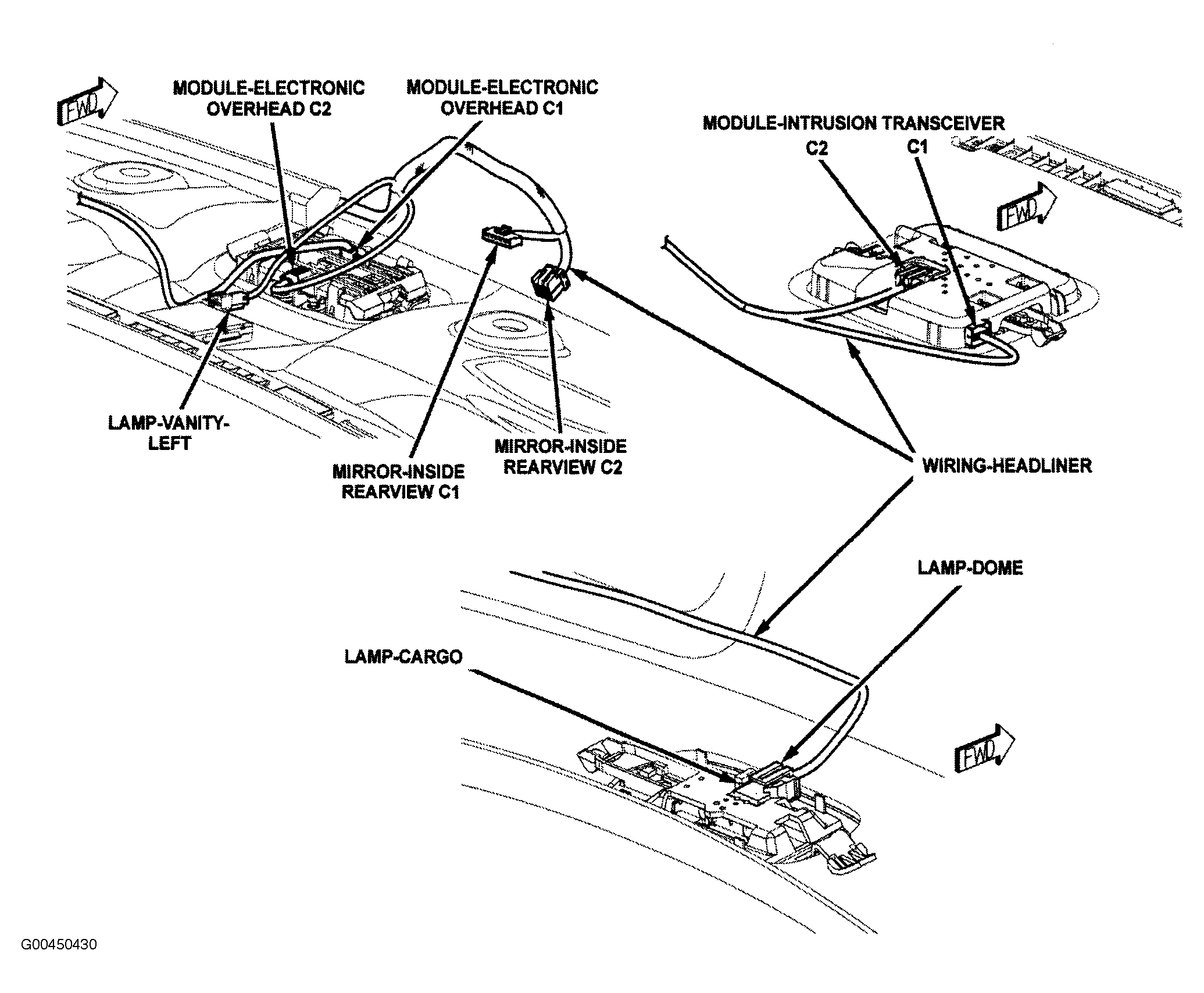

| Anti-Lock Brakes Module | Engine compartment near right shock tower. See Figure. |
| Compass Module | Center stack. See Figure. |
| Engine Control Module | Left side of engine compartment. See Figure. |
| Fuel Pump Module | On fuel tank. See Figure. |
| Fuel Pump Module (FWD) | On fuel tank. See Figure. |
| Hands Free Module | Right side of instrument panel. See Figure. |
| Heated Seats Module | Under seat. See Figure. |
| Intrusion Transceiver Module | Center instrument panel. See Figure. |
| Inverter Module | Lower center instrument panel. See Figure. |
| Occupant Classification Module | Front of passenger seat. See Figure. |

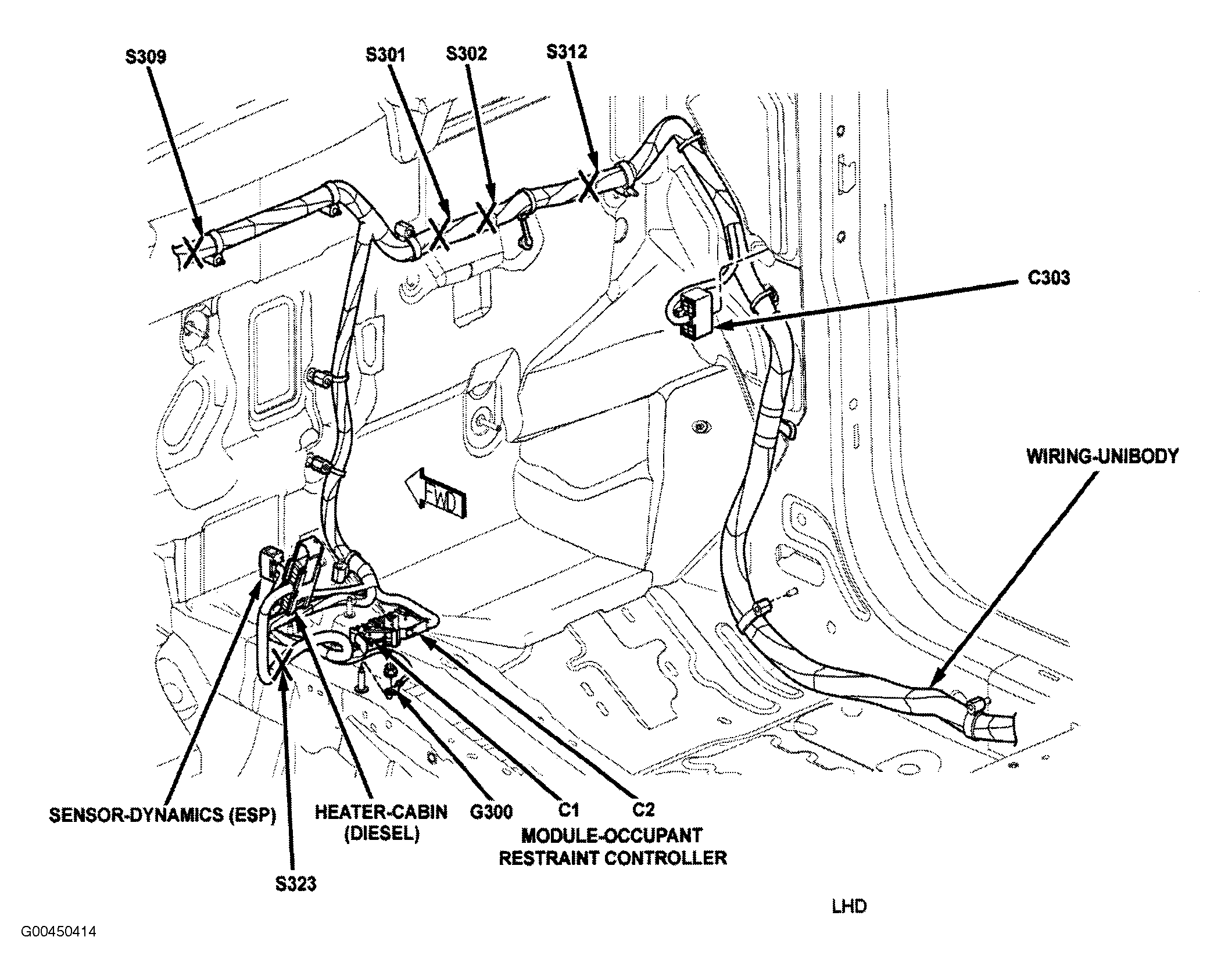

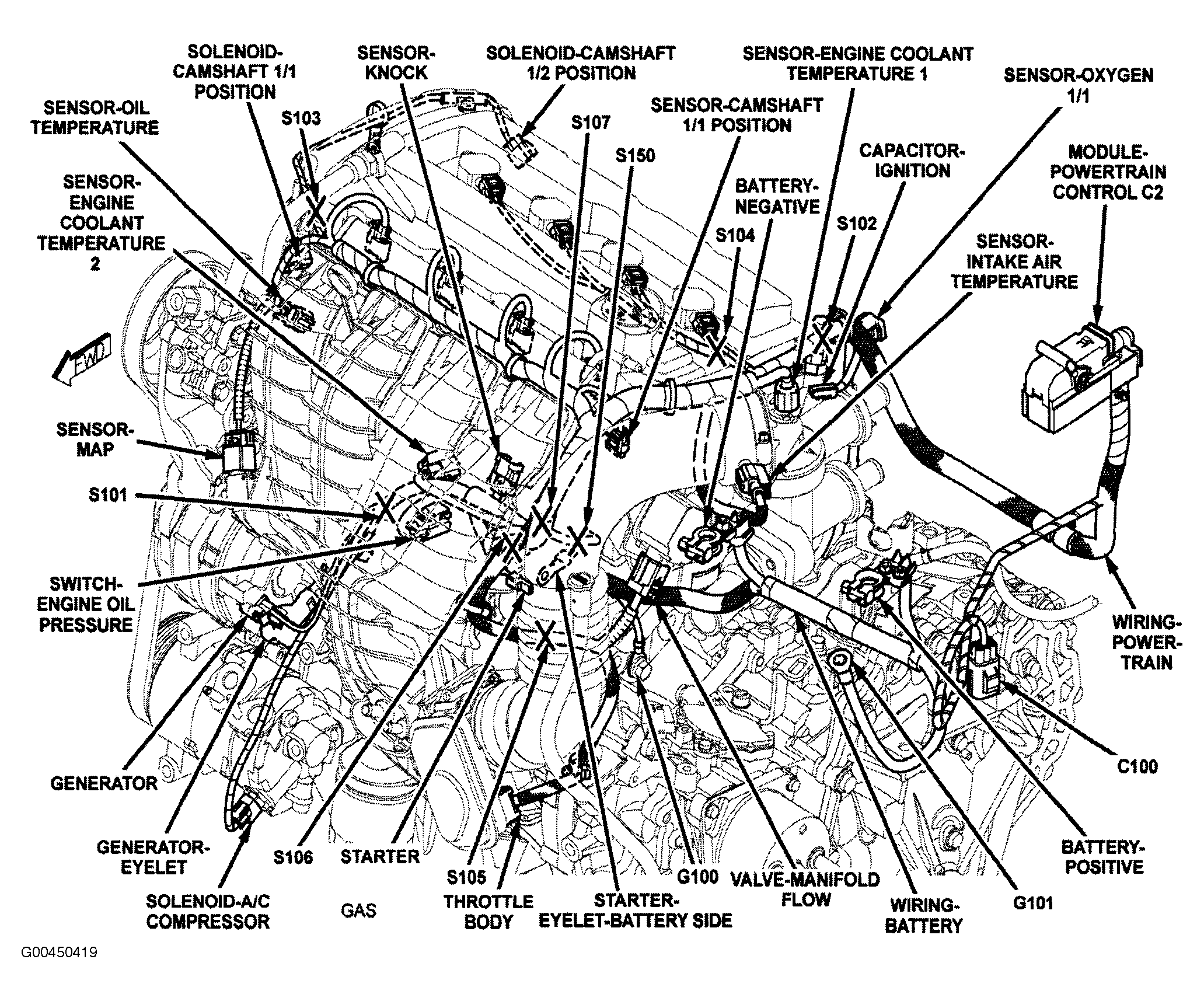

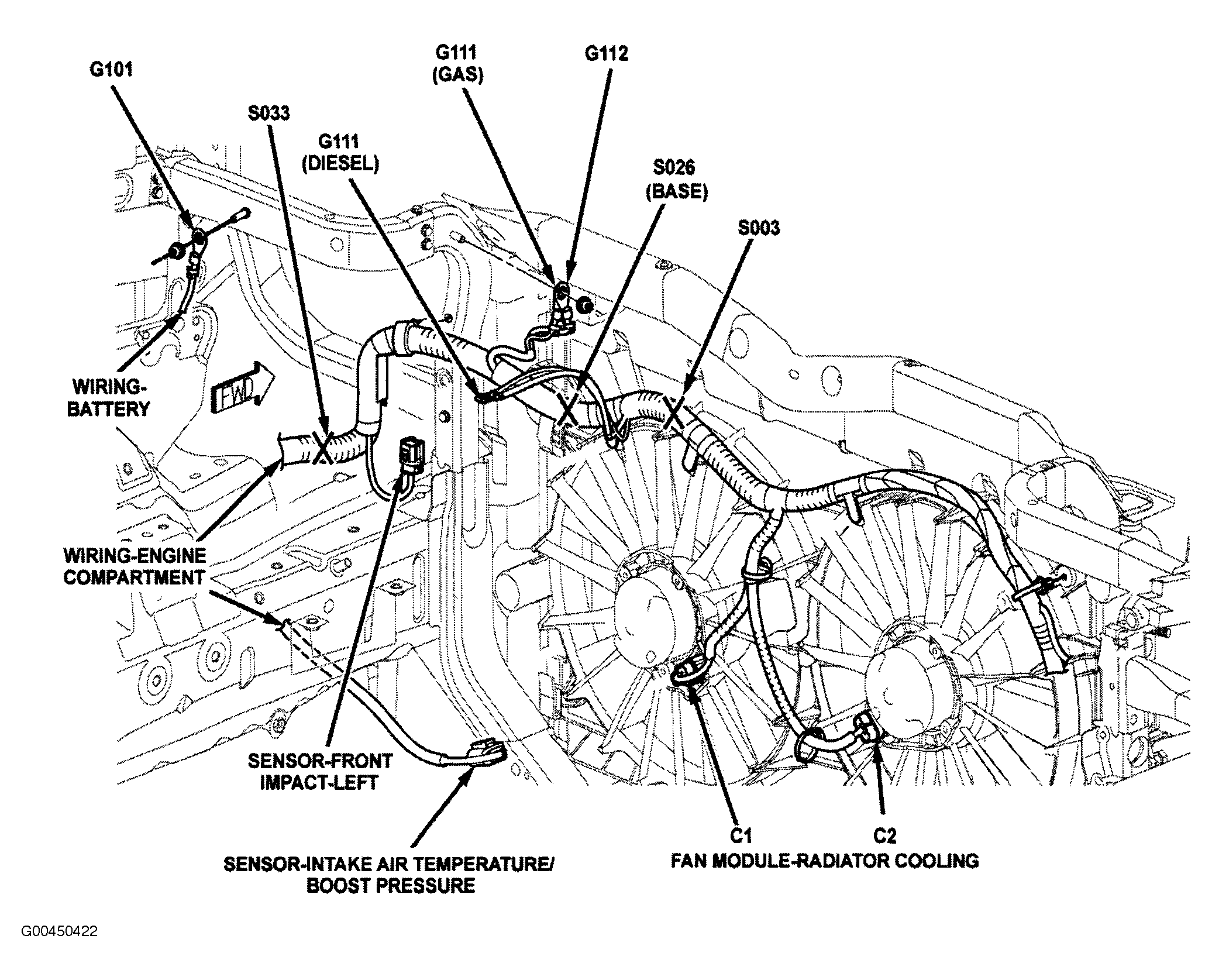

| Occupant Restraint Controller Module | Under center console. See Figure. |
| Powertrain Control Module | Left side engine compartment. See Figure. |
| Radiator Cooling Fan Module | Front center engine compartment. See Figure. |
| Sentry Key Remote Entry/WCM Module | Right of steering column. See Figure. |

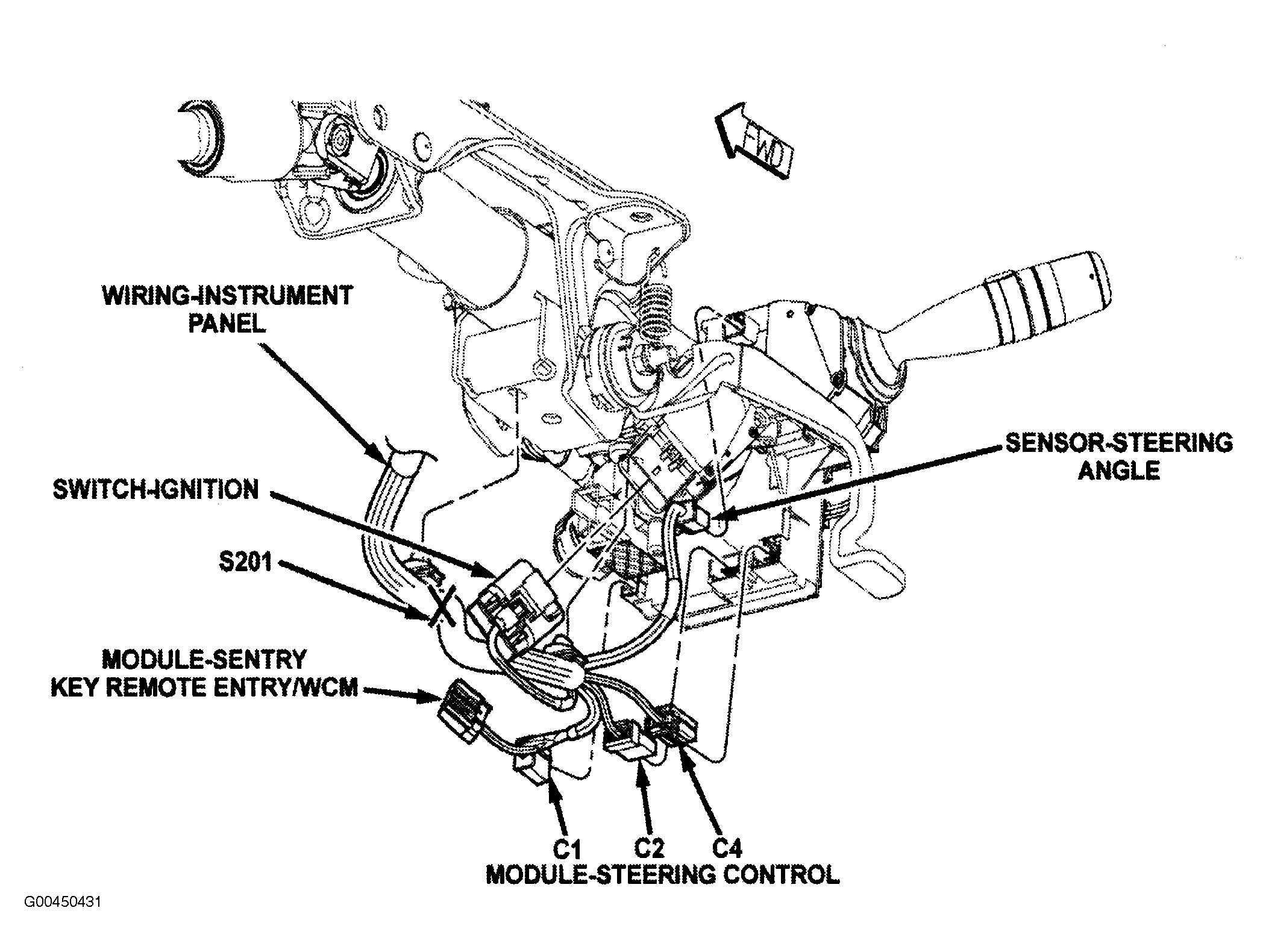

| Steering Control Module | At steering column. See Figure. |

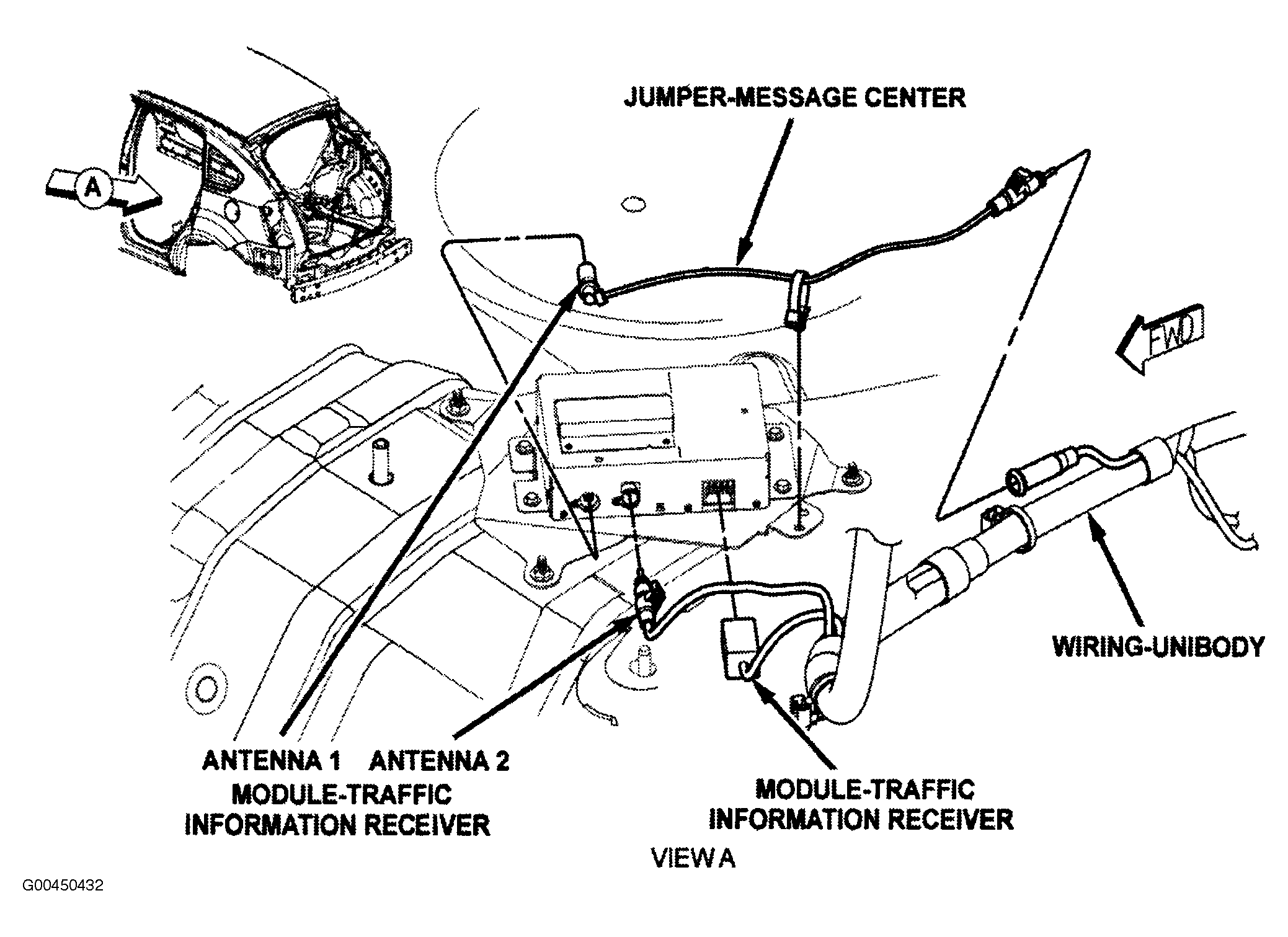

| Traffic Information Receiver Module | Left rear body floor. See Figure. |
| Transmission Control Module | Body harness below left side instrument panel. See Figure. |
