Sensor-Accelerator Pedal Position

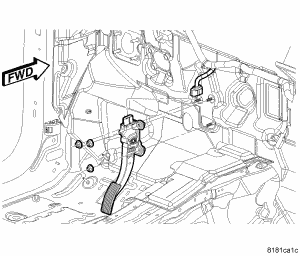

Fig 1: PEDAL AND APPS SENSOR
GC0055475Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Disconnect the electrical connector from the module.
  3. Remove the mounting nuts.
  4. Remove assembly from the mounting studs.
