Fuel Injector: Description: Injectors-Fuel

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.

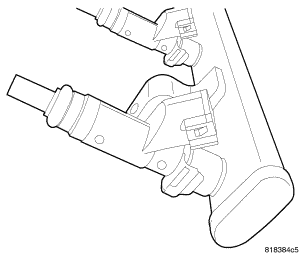

Fig 1: Fuel Injector Location-Typical

Courtesy of CHRYSLER LLC
