Sensor-Inlet Air Temperature - 2.0/2.4L

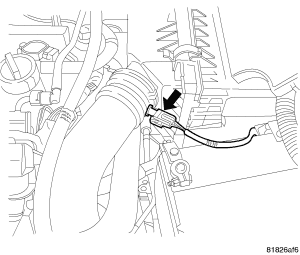

Fig 1: SENSOR LOCATION

Courtesy of CHRYSLER LLC

The sensor is located in the clean air duct.

1. Disconnect the negative battery cable.
2. Disconnect electrical connector from the sensor.
3. Remove the sensor.
