Sensor-Manifold Absolute Pressure (Map) - 2.0/2.4L

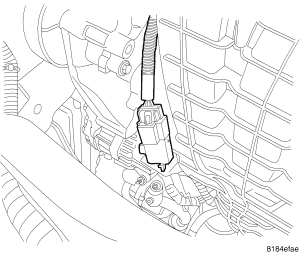

Fig 1: MAP SENSOR LOCATION

Courtesy of CHRYSLER LLC

1. Remove the air cleaner cover.
2. Disconnect the negative battery cable.
3. Disconnect the electrical connector from the MAP sensor.
4. Remove the screws from the MAP sensor.
   Fig 2: MAP SENSOR

   Courtesy of CHRYSLER LLC
5. Remove the MAP sensor.
