Special Tools: Fuel

Fig 1: Pressure Gauge Assembly C-4799-B
GC0019401Courtesy of CHRYSLER LLC
Fig 2: Fuel Pressure Test Adapter 6539
GC0019402Courtesy of CHRYSLER LLC

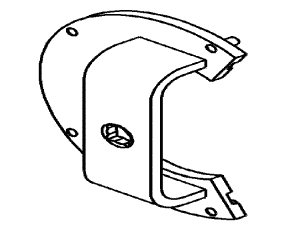

Fig 3: 9318 LOCK RING TOOL
GC0055416Courtesy of CHRYSLER LLC

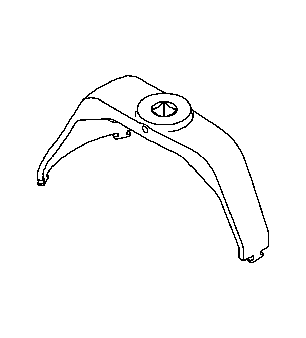

Fig 4: Lockring Remover/Installer #9340
GC0000329Courtesy of CHRYSLER LLC
Fig 5: Fuel Line Adapter 1/4
GC0019405Courtesy of CHRYSLER LLC
Fig 6: Oxygen Sensor Remover/Installer - C-4907
GC0019406Courtesy of CHRYSLER LLC
Fig 7: Oxygen Sensor Remover/Installer - 8439
GC0019400Courtesy of CHRYSLER LLC
