Oil Control Valve Removal

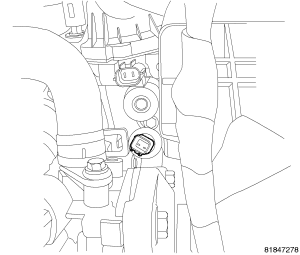

Fig 1: OIL PRESSURE SENSOR
GC0053396Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Rotate hose clamp out of way.
  4. Disconnect oil pressure sensor electrical connector.
  5. Remove oil pressure sensor.
  6. Disconnect variable valve timing solenoid electrical connector.

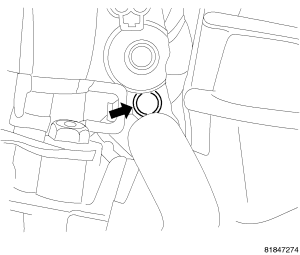

    Fig 2: SOLENOID MOUNTING BOLT
    GC0053397Courtesy of CHRYSLER LLC
  7. Remove variable valve timing solenoid mounting bolt.

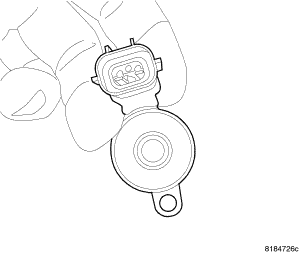

    Fig 3: SOLENOID MOUNTING TAB 1/1
    GC0053398Courtesy of CHRYSLER LLC
  8. Pull solenoid straight out of cylinder head.

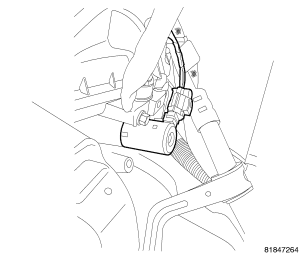

Fig 1: SOLENOID LOCATION 1/2
GC0053399Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Disconnect variable valve timing solenoid electrical connector.
  4. Remove variable valve timing solenoid mounting bolt.

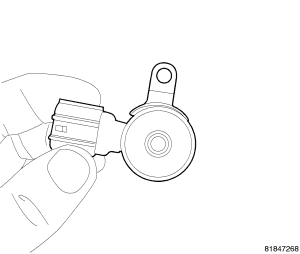

    Fig 2: SOLENOID MOUNTING TAB 1/2
    GC0053400Courtesy of CHRYSLER LLC
  5. Pull solenoid straight out of cylinder head.
