Home >> Jeep >> 2007 >> Compass Limited, AWD, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0032 To P0135 >> P0111-Intake Air Temperature Sensor Performance >> Circuit Schematic
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Circuit Schematic

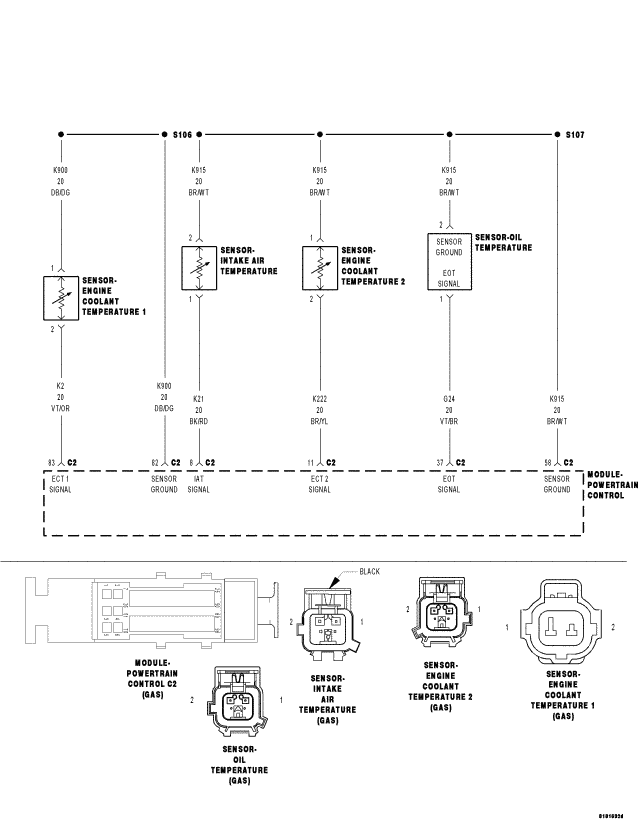

Fig 1: Engine Coolant Temperature, Oil Temperature & Intake Air Temperature Sensor Circuit Schematic
GC0053894Courtesy of CHRYSLER LLC
