2007
>>
Compass Limited, AWD, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0271 To P0441
>>
P0366-Camshaft Position Sensor Performance-Bank 1 Sensor 2
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

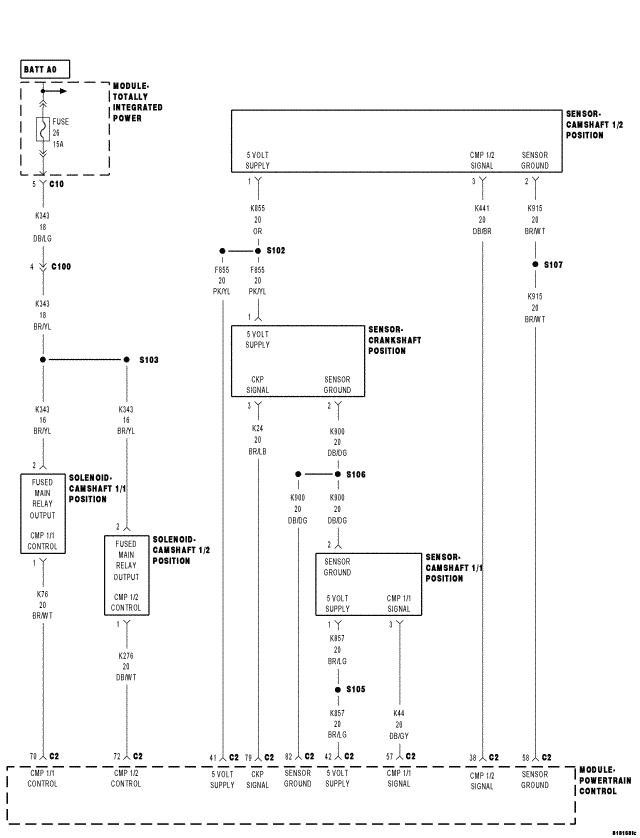

Fig 1: Crankshaft & Camshaft Position Sensor/Solenoid Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
