Home >> Jeep >> 2007 >> Compass Limited, AWD, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0563 To P0625 >> P0571-Brake Switch 1 Performance >> Circuit Schematic
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Circuit Schematic

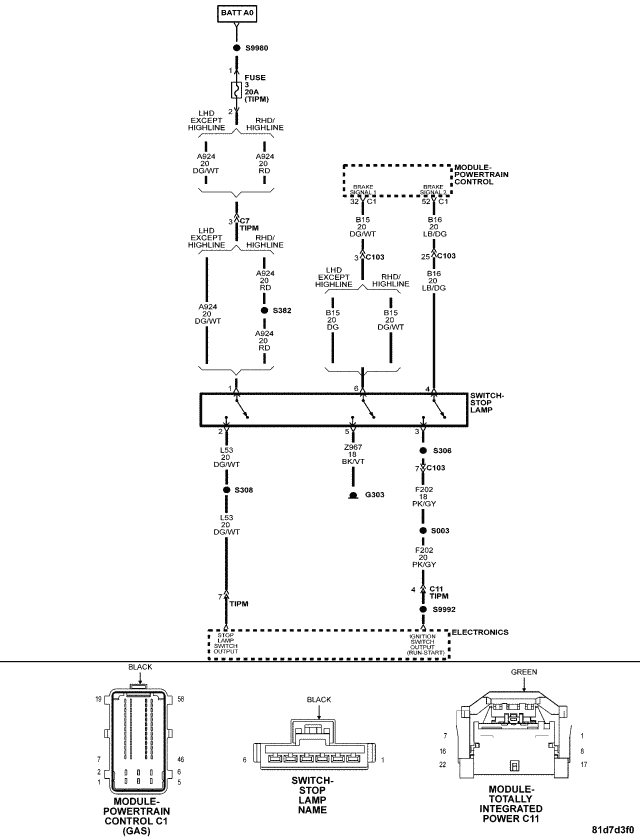

Fig 1: Stop Lamp Switch Circuit Schematic
GC0053941Courtesy of CHRYSLER LLC
