Home >> Jeep >> 2007 >> Compass Limited, AWD, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0626 To P1279 >> P0645-Ac Compressor Relay Open Circuit >> Circuit Schematic

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Circuit Schematic

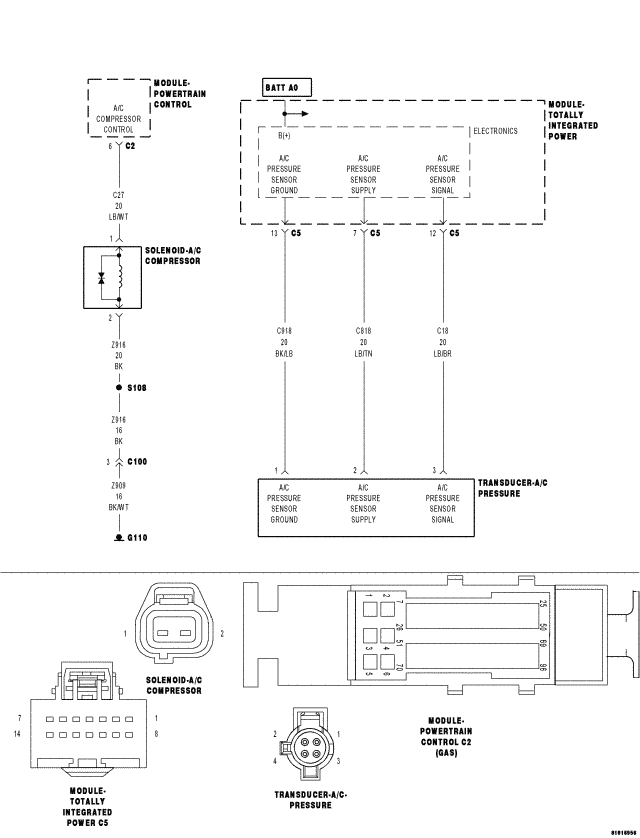

Fig 1: A/C Pressure Sensor Circuit Schematic

GC0054129

Courtesy of CHRYSLER LLC
