Diagnostic Test

  1. 1) DTC IS ACTIVE

    Turn the ignition on.

    With the scan tool, select View DTCs and review the DTC environmental information.

    Is the good trip counter greater than 0?

    Yes

    1. Refer to the *CHECKING FOR AN INTERMITTENT CONDITION Diagnostic Procedure.

    No

    1. Go to  2).
  2. 2) EXTERIOR FUEL TANK DAMAGE

    Inspect the exterior of the fuel tank for any damage that may restrict the movement of the fuel level sensor floats.

    Were any problems found?

    Yes

    1. Replace the fuel tank as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to  3).
  3. 3) FUEL PUMP MODULE WIRING AND CONNECTORS

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Pump Module harness connector and the Instrument Cluster (CCN).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to  4).
  4. 4) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT VOLTAGE

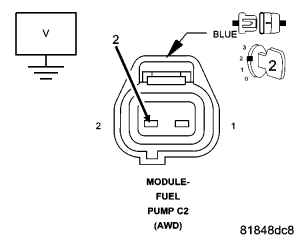

    Fig 1: Measuring Voltage Of (N5) Fuel Level Signal 2 Circuit In Fuel Level Sensor 2 Harness Connector
    GC0054162Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Fuel Pump Module harness connector.

    Turn the ignition on.

    With the scan tool, read the Fuel Level Sensor 2 circuit voltage.

    NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus .1 volt) with connector disconnected.

    Turn the ignition off.

    Connect a jumper wire between ground and the (N5) Fuel Level Signal 2 circuit in the Fuel Pump Module harness connector.

    Turn the ignition on.

    With the scan tool, read the Fuel Level Sensor 2 circuit voltage.

    NOTE: The sensor voltage should be approximately 0.0 volts (plus or minus .1 volt) with the jumper wire in place.

    Does the scan tool display the voltage as described above?

    Yes

    1. Go to  5).

    No

    1. Go to  11).
  5. 5) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT VOLTAGE

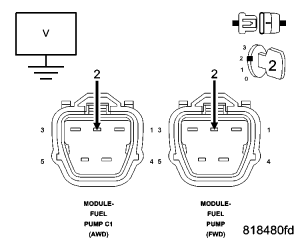

    Fig 2: Measuring Voltage Of (N4) Fuel Level Signal 1 Circuit In Fuel Level Sensor 1 Harness Connector
    GC0053903Courtesy of CHRYSLER LLC

    With the scan tool, read the Fuel Level Sensor 1 circuit voltage.

    NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus .1 volt) with connector disconnected.

    Turn the ignition off.

    Connect a jumper wire between ground and the (N4) Fuel Level Signal 1 circuit in the Fuel Pump Module harness connector.

    Turn the ignition on.

    With the scan tool, read the Fuel Level Sensor 1 circuit voltage.

    NOTE: The sensor voltage should be approximately 0.0 volts (plus or minus .1 volt) with the jumper wire in place.

    Does the scan tool display the voltage as described above?

    Yes

    1. Go to  6).

    No

    1. Go to  14).
  6. 6) (Z965) GROUND CIRCUIT OPEN OR HIGH RESISTANCE

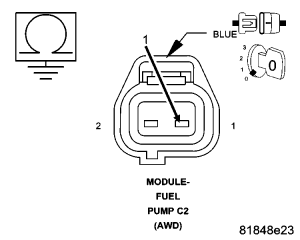

    Fig 3: Checking Ground Circuit For Open Or High Resistance
    GC0054179Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance between ground and the (Z965) Ground circuit in the Fuel Pump Module harness connector.

    Is the resistance below 5 ohms?

    Yes

    1. Go to  7).

    No

    1. Repair the (Z965) Ground circuit for an open circuit or high resistance.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  7. 7) FUEL TANK WIRING HARNESS INSPECTION
    WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in personal injury or death.

    Remove the fuel tank in accordance with the Service Information.

    Inspect the wiring and connectors between the Fuel Pump Module harness connector and both Fuel Level Sensors.

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to  8).
  8. 8) FUEL LEVEL SENSOR 1 INSPECTION

    Remove the Fuel Level Sensor 1.

    Inspect the Fuel Level Sensor 1 and the inside of the fuel tank for any condition that would restrict the movement of the fuel level sensor float.

    Were any problems found?

    Yes

    1. Repair or replace the fuel tank components as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to  9).
  9. 9) FUEL LEVEL SENSOR 1 RESISTANCE

    Move the Fuel Level Sensor 1 float to its lowest point of travel.

    Measure the resistance between the terminals of Fuel Level Sensor 1.

    NOTE: The resistance should be approximately 120 ohms with the float at its lowest point of travel (empty).

    Move the Fuel Level Sensor 1 float to its highest point of travel.

    Measure the resistance between the terminals of Fuel Level Sensor 1.

    NOTE: The resistance should be approximately 13 ohms with the float at its highest point of travel (full).

    Is the resistance of the sensor within the values described above?

    Yes

    1. Go to  10).

    No

    1. Replace the Fuel Level Sensor 1.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  10. 10) FUEL LEVEL SENSOR 2 INSPECTION

    Remove the Fuel Level Sensor 2 sensor.

    Inspect the Fuel Level Sensor 2 and the inside of the fuel tank for any condition that would restrict the movement of the fuel level sensor float.

    Were any problems found?

    Yes

    1. Repair or replace the fuel tank components as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Replace the Fuel Level Sensor 2.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  11. 11) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO VOLTAGE
    Fig 4: Measuring Voltage Of (N5) Fuel Level Signal 2 Circuit In Fuel Level Sensor 2 Harness Connector
    GC0054162Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Instrument Cluster (CCN) connector.

    Turn the ignition on.

    Measure the voltage of the (N5) Fuel Level Signal 2 circuit in the Fuel Level Sensor 2 harness connector.

    Is there any voltage present?

    Yes

    1. Repair the (N5) Fuel Level Signal 2 circuit for a short to voltage.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to  12).
  12. 12) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT SHORTED TO GROUND

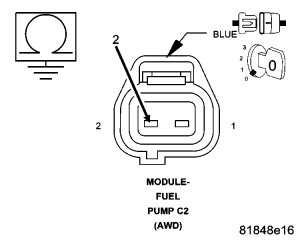

    Fig 5: Measuring Resistance Between Ground And (N5) Fuel Level Signal 2 Circuit In Fuel Level Sensor 2 Harness Connector
    GC0054163Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance between ground and the (N5) Fuel Level Signal 2 circuit in the Fuel Level Sensor 2 harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to  13).

    No

    1. Repair the (N5) Fuel Level Signal 2 circuit for a short to ground.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  13. 13) (N5) FUEL LEVEL SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

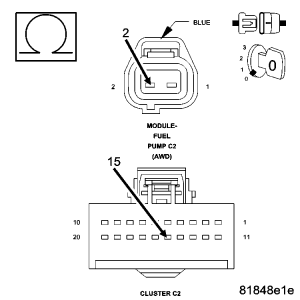

    Fig 6: Checking Fuel Level Signal 2 Circuit For Open Or High Resistance
    GC0054164Courtesy of CHRYSLER LLC

    Measure the resistance of the (N5) Fuel Level Signal 2 circuit between the Fuel Level Sensor 2 harness connector and the Instrument Cluster (CCN) harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  17).

    No

    1. Repair the (N5) Fuel Level Signal 2 circuit for an open circuit or high resistance.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  14. 14) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE
    Fig 7: Measuring Voltage Of (N4) Fuel Level Signal 1 Circuit In Fuel Level Sensor 1 Harness Connector
    GC0053903Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Instrument Cluster (CCN) connector.

    Turn the ignition on.

    Measure the voltage of the (N4) Fuel Level Signal 1 circuit in the Fuel Level Sensor 1 harness connector.

    Is there any voltage present?

    Yes

    1. Repair the (N4) Fuel Level Signal 1 circuit for a short to voltage.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go to  15).
  15. 15) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT SHORTED TO GROUND

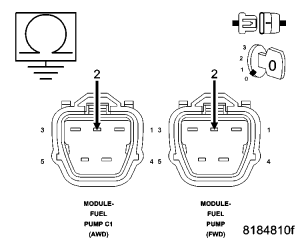

    Fig 8: Checking Fuel Level Signal 1 Circuit For Shorted To Ground
    GC0054026Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance between ground and the (N4) Fuel Level Signal 1 circuit in the Fuel Level Sensor 1 harness connector.

    Is the resistance above 100 ohms?

    Yes

    1. Go to  16).

    No

    1. Repair the (N4) Fuel Level Signal 1 circuit for a short to ground.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  16. 16) (N4) FUEL LEVEL SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

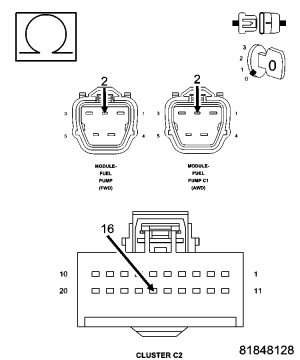

    Fig 9: Checking Fuel Level Signal 1 Circuit For Open Or High Resistance
    GC0053904Courtesy of CHRYSLER LLC

    Measure the resistance of the (N4) Fuel Level Signal 1 circuit between the Fuel Level Sensor 1 harness connector and the Instrument Cluster (CCN) harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  17).

    No

    1. Repair the (N4) Fuel Level Signal 1 circuit for an open circuit or high resistance.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  17. 17) INSTRUMENT CLUSTER (CCN)

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Fuel Pump Module and the Instrument Cluster (CCN).

    Look for any chafed, pierced, pinched, or partially broken wires.

    Look for broken, bent, pushed out or corroded terminals.

    Refer to any Technical Service Bulletins that may apply.

    Were any problems found?

    Yes

    1. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Replace the Instrument Cluster (CCN) in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST - VER 1 .
