EGR Valve

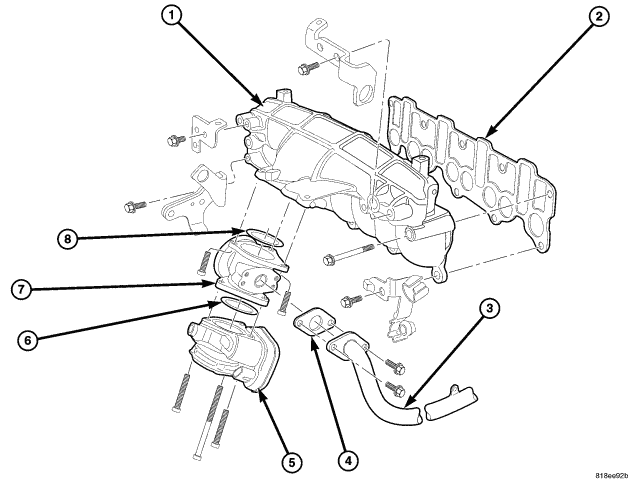

Fig 1: Intake Manifold & Components

Courtesy of CHRYSLER LLC

Inspect EGR and intake manifold flap motor o-rings (6,8) for damage. Replace as necessary.
Install EGR valve (7) to intake manifold. Torque retaining bolts to 10.m (88 lbs.in.).
Install intake manifold flap motor (5) to EGR valve (7). Torque retaining bolts to 10 N.m (88 lbs.in.).
Inspect EGR pipe gasket (4)for damage, replace as necessary.
Connect EGR pipe (3) to EGR valve. Torque retaining bolts to 20N.m (177 lbs.in.).
Connect EGR valve vacuum line.

Fig 2: Engine Cover
Courtesy of CHRYSLER LLC
Install engine cover. Refer to INSTALLATION .

Fig 3: Air Inlet Duct
Courtesy of CHRYSLER LLC
Connect negative battery cable.
Install air inlet duct (3).
