Module-Fuel Pump - AWD

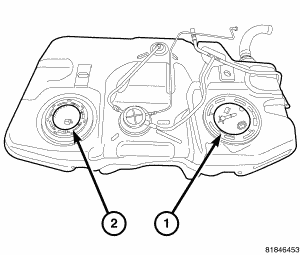

Fig 1: FUEL TANK ASSEMBLY AWD
GC0055422Courtesy of CHRYSLER LLC
WARNING: Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.
  1. Perform Fuel System Pressure Release procedure.
  2. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
  3. Remove the negative battery cable.
    Fig 2: REAR SEAT IN PLACE
    GC0055417Courtesy of CHRYSLER LLC
  4. Remove the rear seat cushion.
    Fig 3: CUSHION LOOSE
    GC0055413Courtesy of CHRYSLER LLC
  5. Rear seat cushion loose.
    Fig 4: MODULE COVER
    GC0055414Courtesy of CHRYSLER LLC
  6. Remove plastic cover.
    Fig 5: LOCK RING TOOL
    GC0055418Courtesy of CHRYSLER LLC
  7. Clean top of tank to remove loose dirt and debris.
  8. Use special tool Spanner Wrench #9340 to remove left side module lock ring.
    Fig 6: LOCATION TAB
    GC0055419Courtesy of CHRYSLER LLC
  9. Note the fuel pump location on the top of the fuel tank.
    NOTE: The pump has to be properly located to the tank for the fuel gauge to work properly.
    Fig 7: REMOVAL OF MODULE
    GC0055420Courtesy of CHRYSLER LLC
  10. Pull module up out of fuel tank, make sure that you do not spill fuel inside of vehicle.
    Fig 8: DRAINING FUEL
    GC0055421Courtesy of CHRYSLER LLC
  11. Drain fuel from fuel pump module. Do not spill fuel in interior of vehicle.
    Fig 9: SIPHON LINE FOR AWD
    GC0055423Courtesy of CHRYSLER LLC
  12. Disconnect internal line from fuel pump module.
  13. Tip module on its side to drain remaining fuel from reservoir and remove module from vehicle.

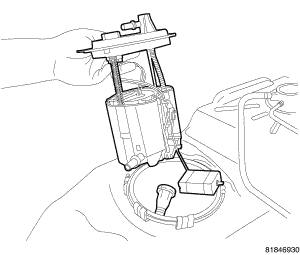

    Fig 10: MODULE REMOVAL/INSTALL
    GC0055424Courtesy of CHRYSLER LLC
  14. Remove module from vehicle.
    Fig 11: Fuel Pump Module Seal
    GC0041455Courtesy of CHRYSLER LLC
  15. Remove seal from tank. Discard seal.
    Fig 12: MODULE COVER
    GC0055414Courtesy of CHRYSLER LLC
  16. Remove plastic cover.
    Fig 13: SMALL MODULE COVER
    GC0055425Courtesy of CHRYSLER LLC
  17. Clean top of tank to remove loose dirt and debris.
  18. Disconnect electrical line from module.

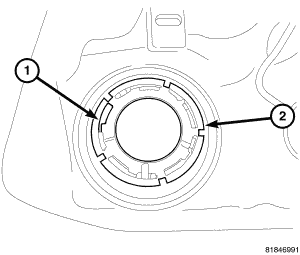

    Fig 14: SMALL MODULE LOCK RING
    GC0055426Courtesy of CHRYSLER LLC
  19. Note the fuel level unit location on the top of the fuel tank (1).
    NOTE: The fuel level unit has to be properly located to the tank for the fuel gauge to work properly.
    Fig 15: SMALL LOCK RING TOOL
    GC0055427Courtesy of CHRYSLER LLC
  20. Using Special Tool Lock Ring #9318 remove lock ring (2) to release fuel level unit.
    Fig 16: TAB LOCATION SMALL MODULE
    GC0055428Courtesy of CHRYSLER LLC
  21. Note the fuel level unit location on the top of the fuel tank.
    NOTE: The fuel level unit has to be properly located to the tank for the fuel gauge to work properly.
    Fig 17: SIPHON LINE ON SMALL MODULE
    GC0055429Courtesy of CHRYSLER LLC
  22. Remove fuel level unit module and disconnect line.
    Fig 18: Fuel Pump Module Seal
    GC0041455Courtesy of CHRYSLER LLC
  23. Remove module and seal from tank. Discard seal.
