Module-Fuel Pump Front Wheel Drive

WARNING: Release fuel system pressure before servicing fuel system components. Service vehicles in well ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle. This may result in personal injury or death.

Perform Fuel System Pressure Release procedure.
Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
Remove the negative battery cable.

Fig 1: REAR SEAT IN PLACE
Courtesy of CHRYSLER LLC
Remove the rear seat cushion.

Fig 2: CUSHION LOOSE
Courtesy of CHRYSLER LLC
Rear seat cushion loose.

Fig 3: MODULE COVER
Courtesy of CHRYSLER LLC
Remove plastic cover.

Fig 4: LOCK RING TOOL
Courtesy of CHRYSLER LLC
Clean top of tank to remove loose dirt and debris.
Use special tool #9340 to remove left side module lock ring.

Fig 5: LOCATION TAB
Courtesy of CHRYSLER LLC
Note the fuel pump location on the top of the fuel tank.
NOTE: The pump has to be properly located to the tank for the fuel gauge to work properly.

Fig 6: REMOVAL OF MODULE
Courtesy of CHRYSLER LLC
Pull module up out of fuel tank, make sure that you do not spill fuel inside of vehicle.

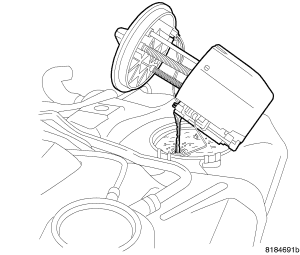

Fig 7: DRAINING FUEL
Courtesy of CHRYSLER LLC
Drain fuel from fuel pump module. Do not spill fuel in interior of vehicle.
