Standard Procedure Common Rail Draining

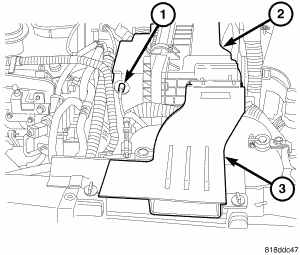

Fig 1: Vacuum Line & Air Cleaner Inlet

Courtesy of CHRYSLER LLC

Remove the vacuum line (1).
Remove the air cleaner inlet (3).

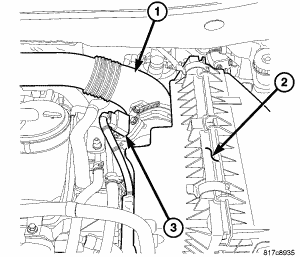

Fig 2: MAF Electrical Connector
Courtesy of CHRYSLER LLC
Disconnect MAF (3) electrical connector.
Remove clean air hose (1).
Remove air cleaner assembly (2).

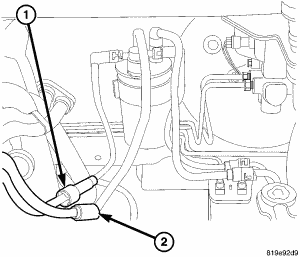

Fig 3: Fuel Feed & Return Lines
Courtesy of CHRYSLER LLC
Disconnect fuel feed (1) and return lines (2).

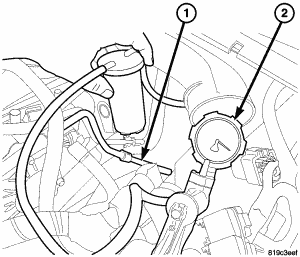

Fig 4: Connecting Vacuum Pump To Return Fuel Line
Courtesy of CHRYSLER LLC
Connect a vacuum pump (2) to the return fuel line (1).
Operate vacuum pump (2) until no more fuel comes out of the return line (1).
