2007
>>
Compass Limited, FWD, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0032 To P0135
>>
P0121-Throttle Position Sensor 1 Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

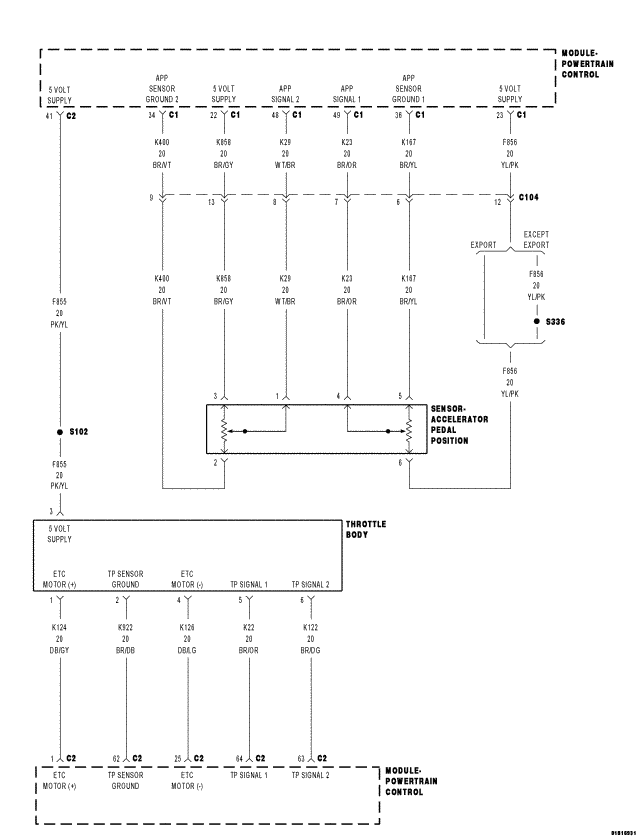

Fig 1: Accelerator Pedal Position Sensor & Throttle Position Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
