Ignition Systems: Cylinder-Key/Lock: Installation: Cylinder-Key

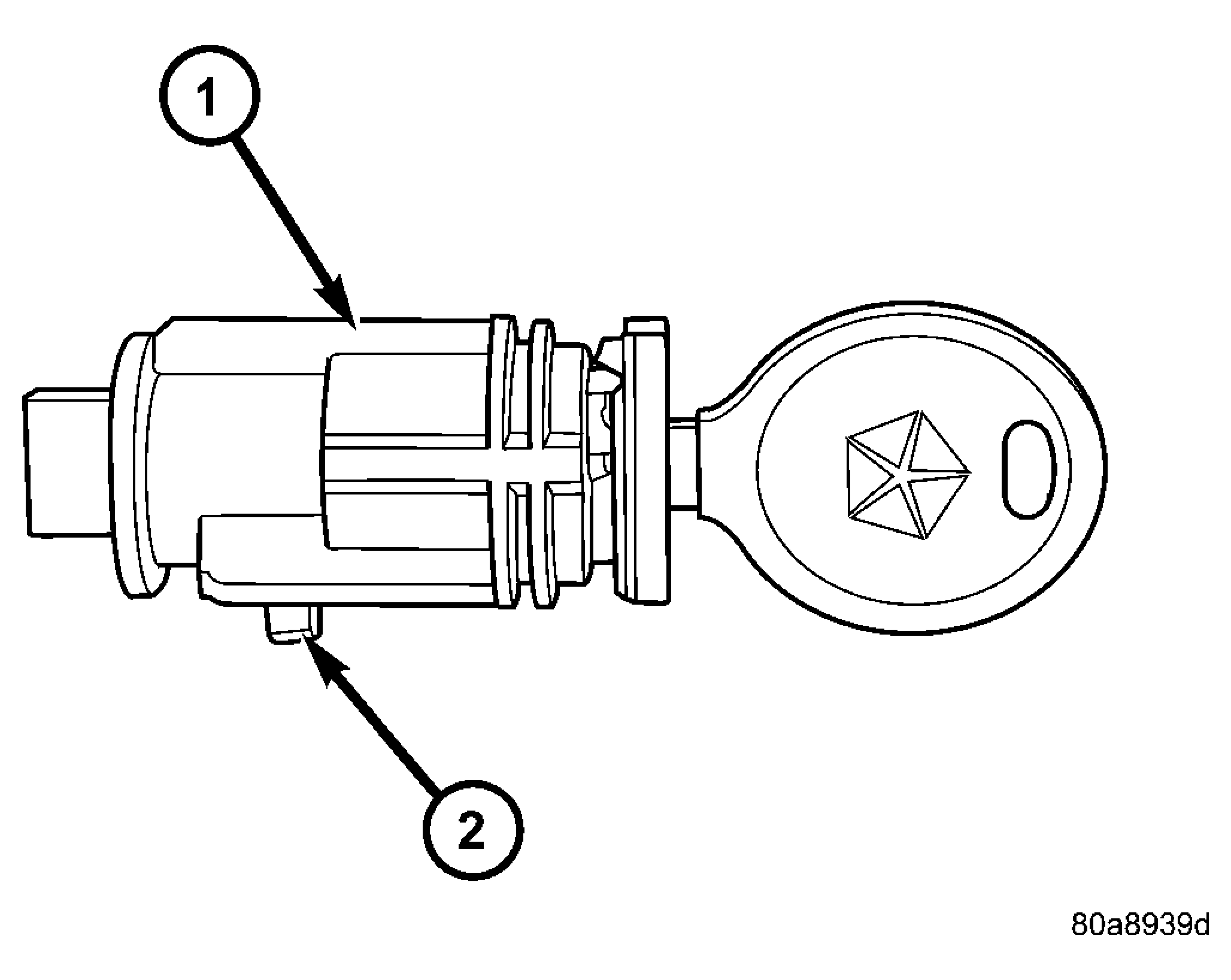

Fig 1: Key Cylinder Release Tang

Courtesy of CHRYSLER LLC

The ignition key must be in the key cylinder (1) for cylinder installation. See Fig 1.

1. Install the key cylinder (1) into the housing using care to align the end of the key cylinder with the ignition switch. See Fig 1.
2. Push the key cylinder (1) in until it clicks. See Fig 1.
3. Rotate the key to the insert position.
4. install the halo ring around the key cylinder housing.
5. Install the R.K.E. module.
6. Install the lower shroud cover.
