Ignition Systems: Cylinder-Key/Lock: Removal: Cylinder-Key

Fig 1: Key Cylinder Release Tang

Courtesy of CHRYSLER LLC

The ignition key must be in the key cylinder (1) for cylinder removal. The key cylinder must be removed first before removing ignition switch.

1. If equipped with an automatic transmission, place shifter in PARK position.
2. Remove the lower shroud cover.
3. Remove the Remote Keyless Entry (R.K.E.) module.
4. Remove the halo ring around the cylinder.
5. Rotate key to ON position.
6. A release tang (2) is located on bottom of key cylinder (1). See Fig 1.

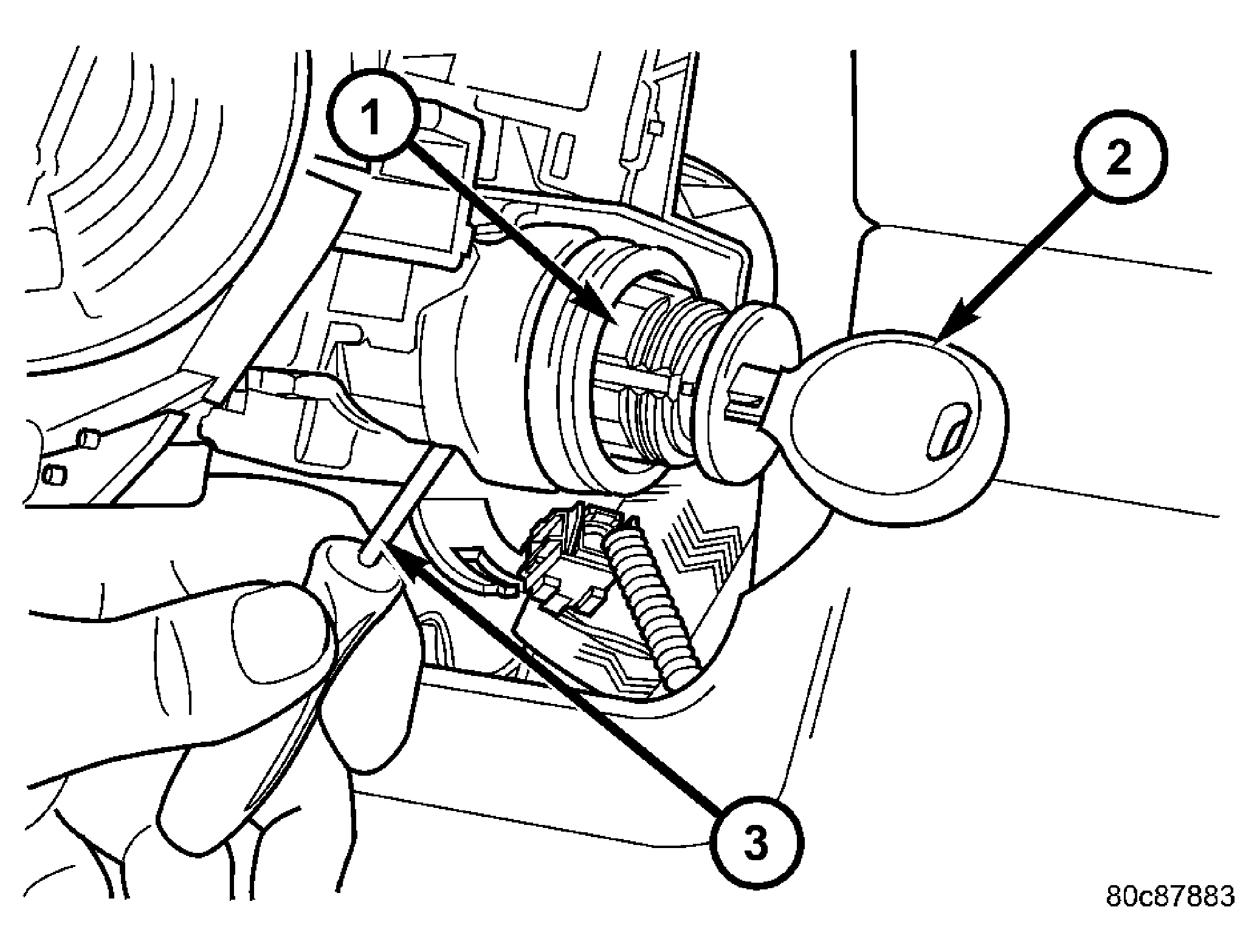

   Fig 2: Key Cylinder Release

   Courtesy of CHRYSLER LLC

   1 - KEY CYLINDER

   2 - KEY

   3 - PIN PUNCH

7. Position a small screwdriver or pin punch (3) into tang access hole on bottom of steering column. See Fig 2.
8. Push the pin punch (3) up while pulling key cylinder (1) from steering column.
