Sensor-Camshaft Position -2.8L TD

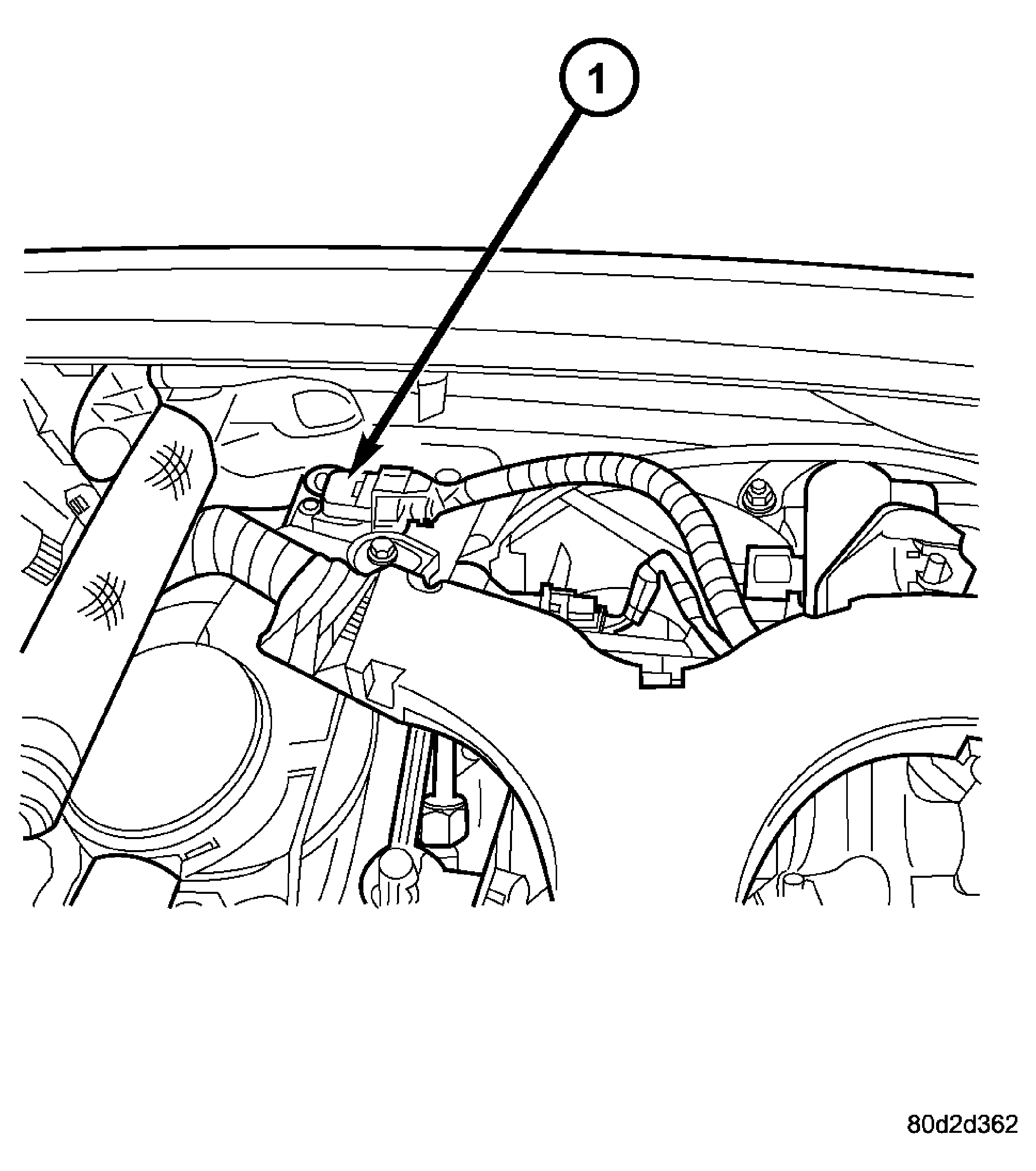

| 1 - CAMSHAFT POSITION (CMP) SENSOR |
- Lubricate O-ring on new CMP sensor (1) and install in cylinder head cover/intake manifold. See Figure.
- Install retaining bolts. Torque to 11 N.m (105 in. lbs.).
- Connect sensor electrical connector.
- Install engine cover. Refer to INSTALLATION .
- Connect negative battery cable.
