Ignition Systems: Sensor-Knock: Description: Sensor-Knock

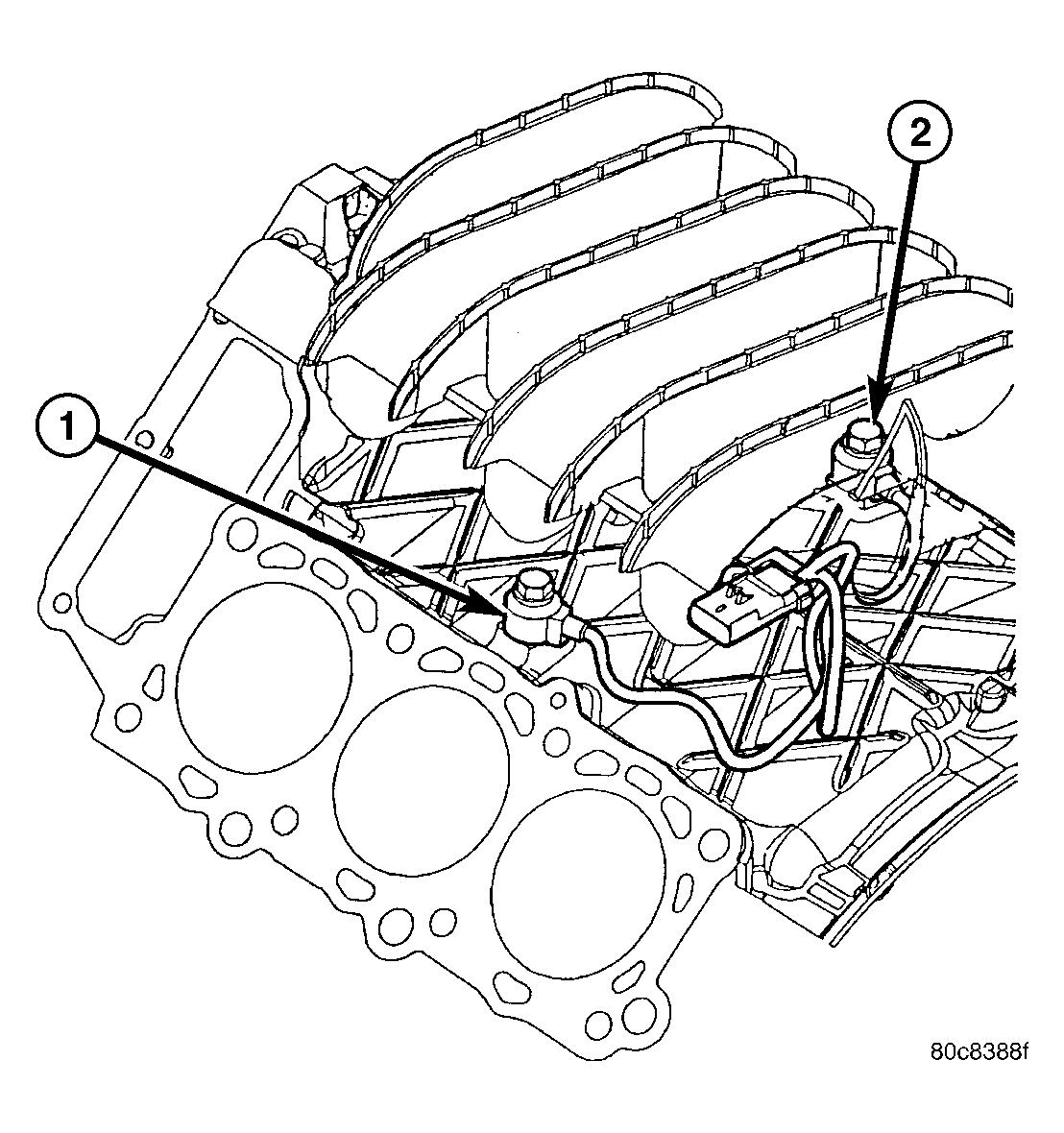

Fig 1: Knock Sensor Location

Courtesy of CHRYSLER LLC

The two knock sensors (1) and (2) are bolted into the cylinder block under the intake manifold.
