Alarm Module, (Vehicle Antitheft)

Component ID: 157
Component : MODULE-INTRUSION TRANSCEIVER

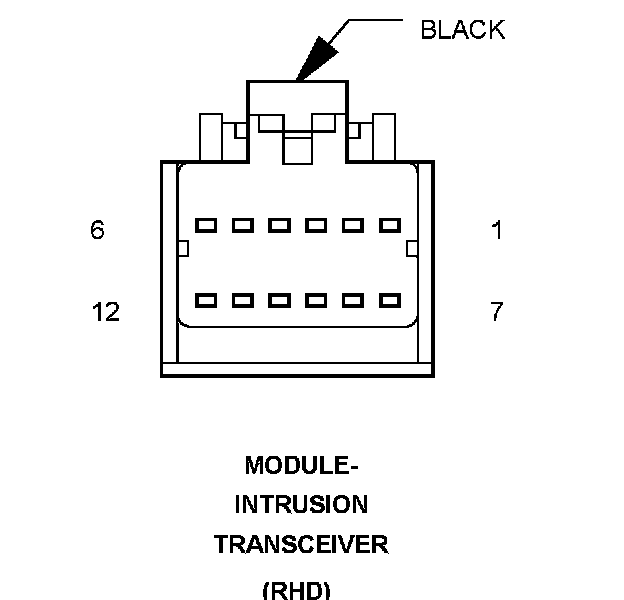

Connector:
Name : MODULE-INTRUSION TRANSCEIVER
Color : BLACK
# of pins : 12
Qualifier : (RHD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A412 18RD
2 - -
3 - -
4 - -
5 SIREN SIGNAL CONTROL D96 20WT/LB
6 CAN INTERIOR BUS (+) D265 20WT/OR
7 GROUND Z910 18BK/WT
8 - -
9 - -
10 - -
11 LIN BUS D122 20WT/LG
12 CAN INTERIOR BUS (-) D264 20WT
