Brake Fluid Level Sensor/Switch

Component ID: 282
Component : SENSOR-BRAKE FLUID LEVEL

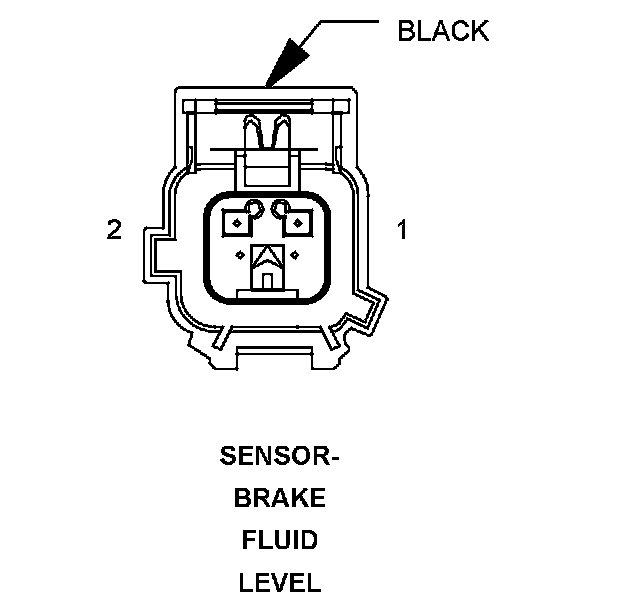

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : BLACK
# of pins : 2




Pin Description Circuit
1 BRAKE FLUID LEVEL SIGNAL B20 20DG/OR
2 GROUND Z905 20BK

Component Location - 5




Component Location - 6

Fig. 6:

Component Location - 11

Fig. 11:
