Cargo Lamp

Component ID: 121
Component : LAMP-CARGO

Connector:
Name : LAMP-CARGO
Color : BLACK
# of pins : 3
Qualifier : (4 DOOR)




Pin Description Circuit
1 READING/RAIL LAMPS DRIVER M27 18YL/LB
2 COURTESY LAMPS DRIVER M24 18YL/WT
3 GROUND Z912 18BK

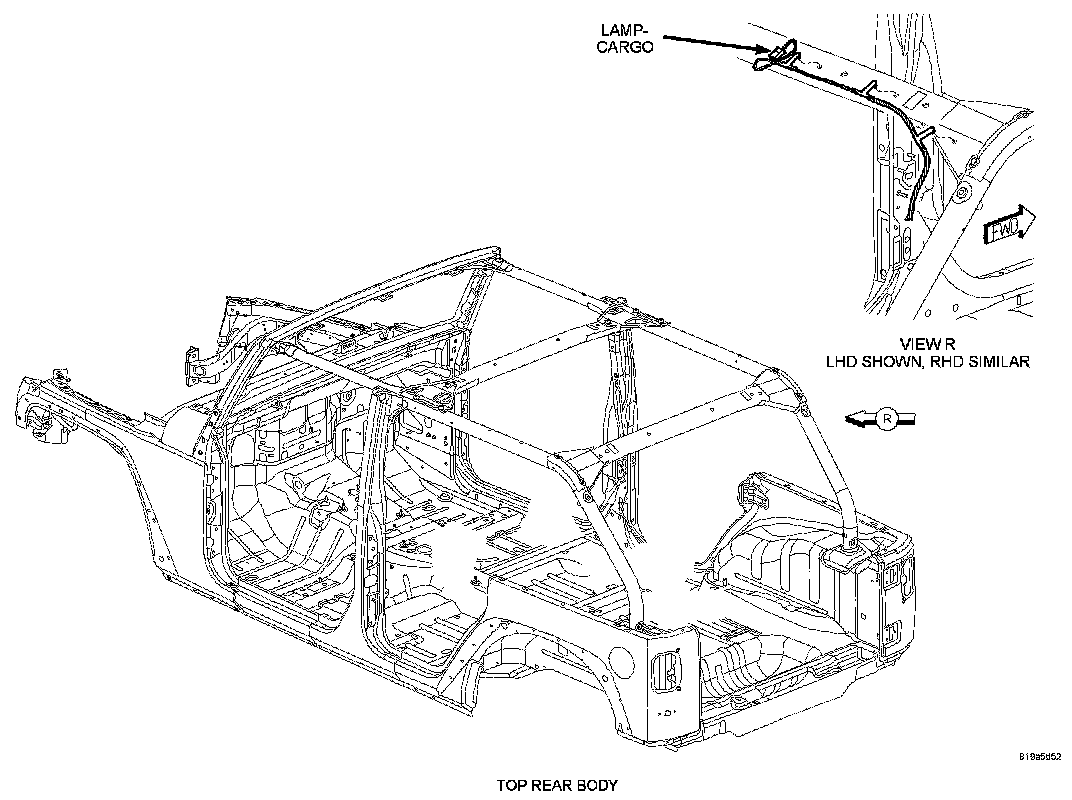

Component Location - 25
