Control Assembly, HVAC

Component ID: 54
Component : CONTROL-A/C-HEATER

Connector:

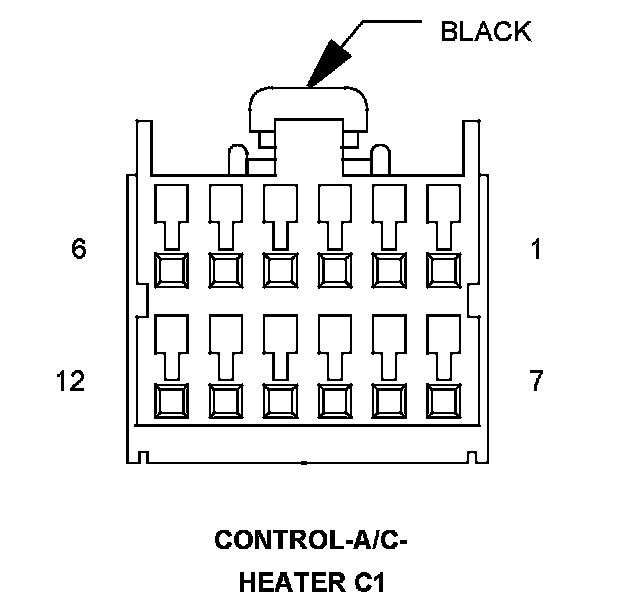

Name : CONTROL-A/C-HEATER C1
Color : BLACK
# of pins : 12




Pin Description Circuit
1 FUSED RUN RELAY OUTPUT F921 20PK/YL
2 PANEL LAMPS DRIVER E12 20OR/GY
3 RECIRCULATION DOOR DRIVER (B) C132 20DB/YL
4 RECIRCULATION DOOR DRIVER (A) C32 20DB/TN
5 A/C INDICATOR DRIVER C4 20LB
6 - -
7 GROUND Z911 18BK/WT
8 - -
9 HVAC MUX RETURN C955 20LB
10 - -
11 HVAC MUX CONTROL C105 20LB/LG
12 REAR WINDOW DEFOGGER SWITCH SIGNAL C215 20LB


Connector:

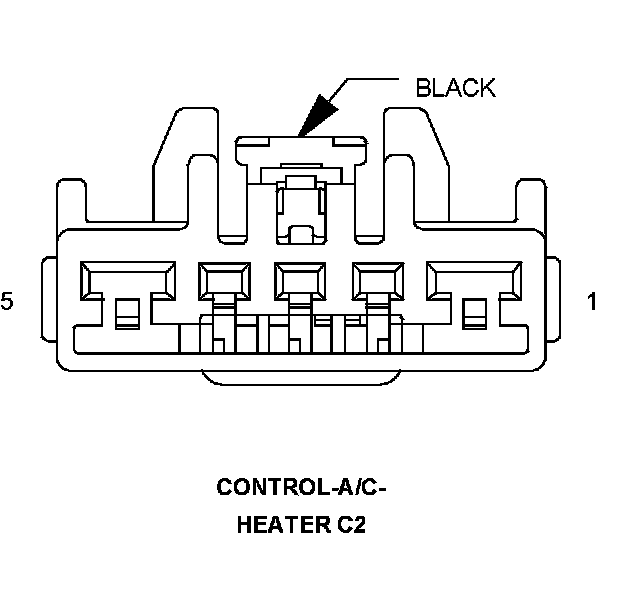

Name : CONTROL-A/C-HEATER C2
Color : BLACK
# of pins : 5




Pin Description Circuit
1 BLOWER MOTOR HIGH DRIVER C70 12DB/YL
2 BLOWER MOTOR M2 DRIVER C73 18DB/VT
3 BLOWER MOTOR M1 DRIVER C72 18DB/OR
4 BLOWER MOTOR LOW DRIVER C71 18DB/BR
5 GROUND Z911 12BK/WT
