Assembly-Variable Line Pressure

Component ID: 19

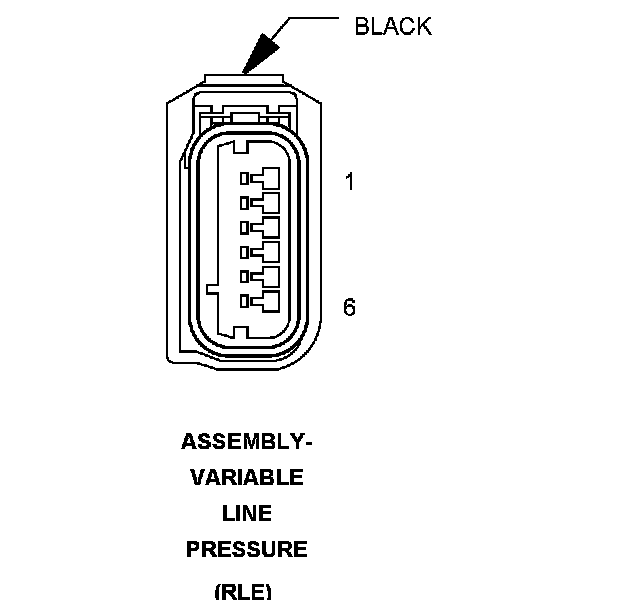

Component : ASSEMBLY-VARIABLE LINE PRESSURE

Connector:
Name : ASSEMBLY-VARIABLE LINE PRESSURE
Color : BLACK
# of pins : 6
Qualifier : (RLE)




Pin Description Circuit
1 - -
2 5 VOLT SUPPLY F856 18YL/PK
3 LINE PRESSURE SIGNAL T38 18YL/BR
4 SENSOR GROUND K900 18DB/DG
5 TRANSMISSION CONTROL OUTPUT T16 18YL/OR
6 LINE PRESSURE CONTROL T118 18DG
