Heated Glass Element Relay

Component ID: 184

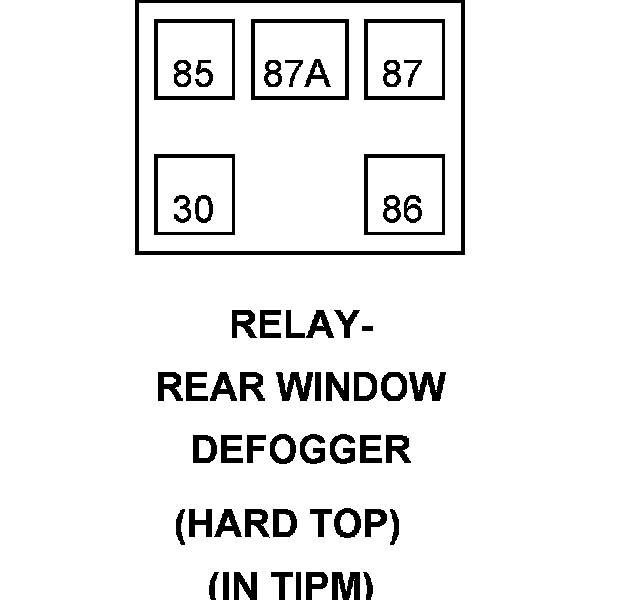

Component : RELAY-REAR WINDOW DEFOGGER

Connector:
Name : RELAY-REAR WINDOW DEFOGGER
Color :
# of pins : 0
Qualifier : (HARD TOP)




30 B(+) INTERNAL
85 B(+) INTERNAL
86 REAR WINDOW DEFOGGER RELAY CONTROL INTERNAL
87 REAR WINDOW DEFOGGER RELAY OUTPUT INTERNAL
87A - -
